LFI REX-08 EV Performance Forged Wheel

.price-ui--loading { display: block !important; opacity: 1 !important; }

Price per Wheel

Material6061-T6 forged aluminium

Sizing18-24 inch

WarrantyLifetime Warranty

Offset-44 to +70

Load targetUp to 1050 kg

Forging12,000-ton forged

Qty

LFI Electric Series

REX-08 EV Performance Forged Wheel

REX-08 EV sharpens the look of an electric car without going full show wheel. It is a clean performance-style forged option for owners who want the car to feel less anonymous.

EV wheel design
Forged 6061-T6 monoblock
18-24inch applications
Custom bolt pattern, bore, offset, and finish

Plan EV Fitment Ask LFI

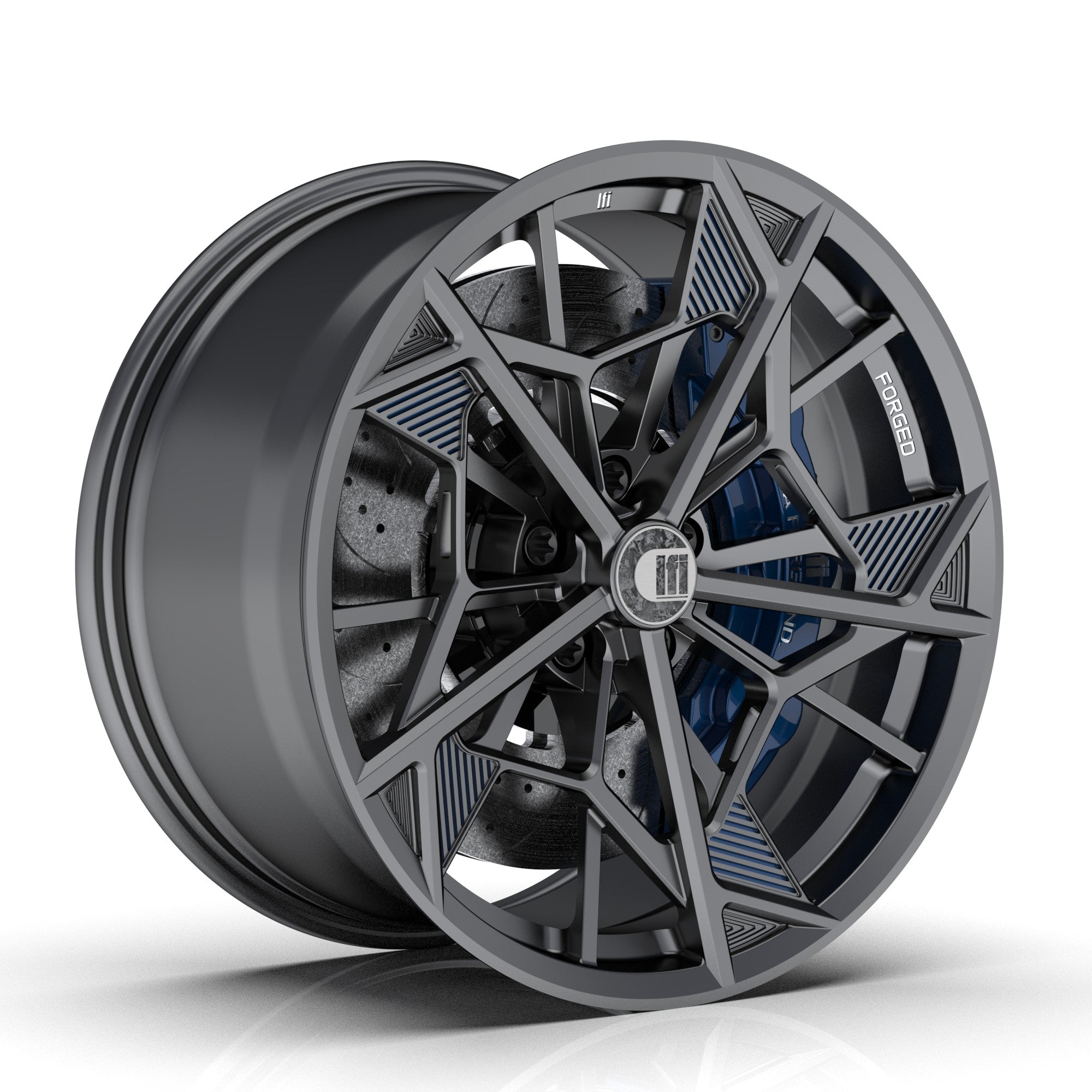

LFI REX-08 EV performance forged wheel product image — REX-08 Electric Series forged wheel product reference. Final spec is built around the exact EV platform.

Forged 6061-T6 monoblocConstruction

18-24inch by applicationSize Range

Load and torque reviewEV Focus

Made-to-order colourFinish

EV Fitment

REX-08 Design Intent

REX-08 EV works well on compact and mid-size EVs where a sharper wheel face can transform the stance. It is useful for owners moving away from heavy OEM aero wheels. The current table spans roughly 8.8 to 17.4 kg depending on size, so smaller fitments favor response while larger fitments add stance and load reserve.

Forged For EV Weight And Torque

This sharp EV street wheel is ordered around EV curb weight, instant torque, tire load, brake clearance, offset target, and daily comfort so the wheel suits the way the car is actually driven.

Best On The Right EV

Good for Model 3, BYD Seal, MG4, MINI EV, Smart #1, Hyundai Ioniq 5, and compact electric builds.

Product References

REX-08 EV Design References

These REX-08 product views show the Electric Series design language. Final width, offset, center bore, load rating, finish, and concavity are confirmed around your car before production.

EV Performance Face

REX-08 is shaped for modern EV bodies where the wheel needs enough visual structure for a larger sedan, crossover, or SUV while keeping the precision of a custom forged monoblock.

custom fitment

LFI checks brake clearance, hub-centric machining, axle load, tire load index, offset, width, and finish before machining instead of treating EV fitment like a generic catalogue size.

Approx. Weight

ApproximateREX-08 Weights

Approximate weight excludes center cap and valve. Final production weight varies with brake clearance, load rating, offset, bolt pattern, center profile, EV axle-load rating, and machining depth.

18 inch	Weight	19 inch	Weight	20 inch	Weight	21 inch	Weight	22 inch	Weight	23 inch	Weight	24 inch	Weight
18x8J	8.8 kg / 19.4 lb	19x8J	9.1 kg / 20.1 lb	20x8.5J	10.2 kg / 22.5 lb	21x9J	11.4 kg / 25.1 lb	22x9J	12.5 kg / 27.6 lb	23x9.5J	13.7 kg / 30.2 lb	24x10J	14.8 kg / 32.6 lb
18x8.5J	9 kg / 19.8 lb	19x8.5J	9.3 kg / 20.5 lb	20x9J	10.4 kg / 22.9 lb	21x9.5J	11.7 kg / 25.8 lb	22x9.5J	12.8 kg / 28.2 lb	23x10J	14 kg / 30.9 lb	24x10.5J	15.1 kg / 33.3 lb
18x9J	9.2 kg / 20.3 lb	19x9J	9.5 kg / 20.9 lb	20x9.5J	10.7 kg / 23.6 lb	21x10J	12 kg / 26.5 lb	22x10J	13.1 kg / 28.9 lb	23x10.5J	14.4 kg / 31.7 lb	24x11J	15.5 kg / 34.2 lb
18x9.5J	9.5 kg / 20.9 lb	19x9.5J	9.8 kg / 21.6 lb	20x10J	11 kg / 24.3 lb	21x10.5J	12.3 kg / 27.1 lb	22x10.5J	13.5 kg / 29.8 lb	23x11J	14.8 kg / 32.6 lb	24x11.5J	15.9 kg / 35.1 lb
18x10J	9.8 kg / 21.6 lb	19x10J	10.1 kg / 22.3 lb	20x10.5J	11.3 kg / 24.9 lb	21x11J	12.7 kg / 28.0 lb	22x11J	13.9 kg / 30.6 lb	23x11.5J	15.2 kg / 33.5 lb	24x12J	16.4 kg / 36.2 lb
18x10.5J	10.1 kg / 22.3 lb	19x10.5J	10.4 kg / 22.9 lb	20x11J	11.6 kg / 25.6 lb	21x11.5J	13.1 kg / 28.9 lb	22x11.5J	14.3 kg / 31.5 lb	23x12J	15.7 kg / 34.6 lb	24x12.5J	16.9 kg / 37.3 lb
18x11J	10.4 kg / 22.9 lb	19x11J	10.7 kg / 23.6 lb	20x11.5J	12 kg / 26.5 lb	21x12J	13.5 kg / 29.8 lb	22x12J	14.8 kg / 32.6 lb	23x12.5J	16.2 kg / 35.7 lb	24x13J	17.4 kg / 38.4 lb

Weight guide: Use these weights for planning. Final weight changes with size, offset, bolt pattern, brake clearance, load rating, finish, and machining details.

Forging Profile Option

EnhancedConcavity

LFI concave profiles are built around the relationship between wheel width, offset, diameter, brake clearance, load rating, and forging depth. The goal is simple: push the face as deep as the car allows, without compromising EV fitment, caliper clearance, or structural integrity.

19-24 inch applications Three concavity levels Offset-sensitive design Cost option

Maximum Concave Face

The Maximum Concave Face option is available for selected LFI forged wheel designs. Depending on wheel width and offset, the face profile can be tuned from mild concave to a much deeper spoke drop.

Wider wheels and lower offsets generally allow stronger concavity. For EV builds, LFI also checks axle load, tire load index, brake envelope, and range or comfort goals before recommending an aggressive face.

Three Concavity Levels

Concavity is not selected by diameter alone. The final face depth is calculated from the full fitment package: rim width, offset, brake clearance, vehicle platform, load rating, and the chosen forged wheel design.

Level 1 concavity for cleaner high-clearance fitments.

Level 2 concavity for wider fitments with more spoke depth.

Level 3 concavity for aggressive low-offset applications.

The exact concavity level is confirmed during fitment planning. LFI checks the target wheel size, brake envelope, center profile, vehicle clearance, and EV load rating before production.

Deep Concave for High-Offset Cars

Some high-offset vehicles do not naturally allow a deep spoke profile because the wheel face must sit further outward to clear the hub and brake package. For these applications, LFI can offer a specialized heavy-duty blank option that creates a more pronounced concave look while keeping the fitment usable.

This is especially useful for EV sedans and crossovers where the customer wants a stronger visual stance but still needs proper inner clearance, brake clearance, tire load, and road-use reliability.

Fitment Still Comes First

Deep concavity must be balanced against caliper clearance, suspension clearance, fender position, tire width, axle load, and the actual offset range the vehicle can accept. The most aggressive face is not always the best face for every car.

LFI will always prioritize a correct forged-wheel fitment over forcing a face profile that creates clearance problems.

Deep Concave Forging Example

The deep concave forging concept shown below demonstrates how a pronounced face profile can be achieved even on a relatively high-offset fitment, using a 19x8.5J ET42 reference example.

LFI deep concave forged wheel concept in 19x8.5J ET42 fitment — Deep concave forged-wheel concept shown on a 19x8.5J ET42 reference fitment.

Cost option: Enhanced concavity and deep concave blank selection are optional upgrades. Final availability depends on wheel size, brake clearance, vehicle platform, load rating, and the selected LFI wheel model.

Options

EV-Friendly Detail Options

Anti-Slip Knurled Beads

Knurled bead seats can help reduce tire movement on higher-torque applications, including heavy EVs and sticky tire setups. LFI can quote this where the use case justifies it.

Annular Reinforcement Ribs

Reinforcement ribs can add barrel rigidity where the final specification, road conditions, tire package, or vehicle weight calls for extra reserve.

Product Questions

REX-08 Questions

Is REX-08 an EV wheel design?

Yes. LFI positions REX-08 as an EV-oriented forged wheel design for customers who want a cleaner electric-platform visual direction with custom fitment, finish, and load-target review.

Can LFI build this wheel for non-EV cars?

Yes. The design can still be specified for compatible petrol, hybrid, and performance platforms when brake clearance, bolt pattern, center bore, width, offset, and load rating are confirmed.

Can this wheel be built in 18 to 24 inch sizes?

Yes. Availability depends on the final vehicle, brake package, load rating, width, offset, and forging blank. LFI confirms the exact size before production.

Does LFI check EV load ratings?

Yes. EVs can carry higher axle loads and instant torque, so LFI reviews load rating, tire load index, brake clearance, center bore, hardware, and intended use before machining.

Can I choose a different finish?

Yes. LFI can quote gloss, satin, brushed, polished, black, silver, bronze, body-color, and selected custom finishes depending on the wheel design and production route.

Custom EV Build

Build REX-08 Around Your car

Send LFI your exact model, year, brake package, current tire size, target wheel diameter, preferred stance, range/comfort priority, and finish direction. LFI will confirm whether REX-08 is the right Electric Series direction before production.

Start REX-08 Fitment View Fitment Guides
