How LFI Wheels Are Made
How LFI designs, engineers, machines, finishes, and delivers bespoke forged wheels — from fitment brief to QC and worldwide delivery.
- Designed in Singapore
- Vehicle-specific FEA
- Forged blank traceability
- CNC lathe profiling
- 3 & 5-axis CNC machining
- Zero-spacer fitment focus
1:1
Every bespoke set starts with the actual car, brake package, and fitment goal.
FEA
Engineering review before CNC machining begins.
±0.05
Lathe-machined width and offset tolerance target for fitment control.
QC
Runout, balance, finish, inspection, packing, and delivery control.
Engineering Philosophy
Custom Forged WheelsWithout Guesswork
LFI does not ask your car to adapt to a generic size. The wheel is drafted around the vehicle — brake package, centre bore, PCD, offset target, load target, concavity, tyre plan, finish, and intended use.
Ultra-lightweight bespoke engineering
Weight reduction only makes sense when the load path, spoke root, hub pad, barrel, and bead-seat areas are still properly supported.
Zero-spacer fitment focus
LFI machines width, offset, centre bore, and brake clearance into the wheel specification itself, reducing dependence on extra spacer hardware and stack-up tolerances.
Built around the platform
Modern ICE, hybrid, and EV platforms can place very different demands on a wheel. LFI adapts structure and specification around vehicle weight, brake package, torque delivery, and use case.

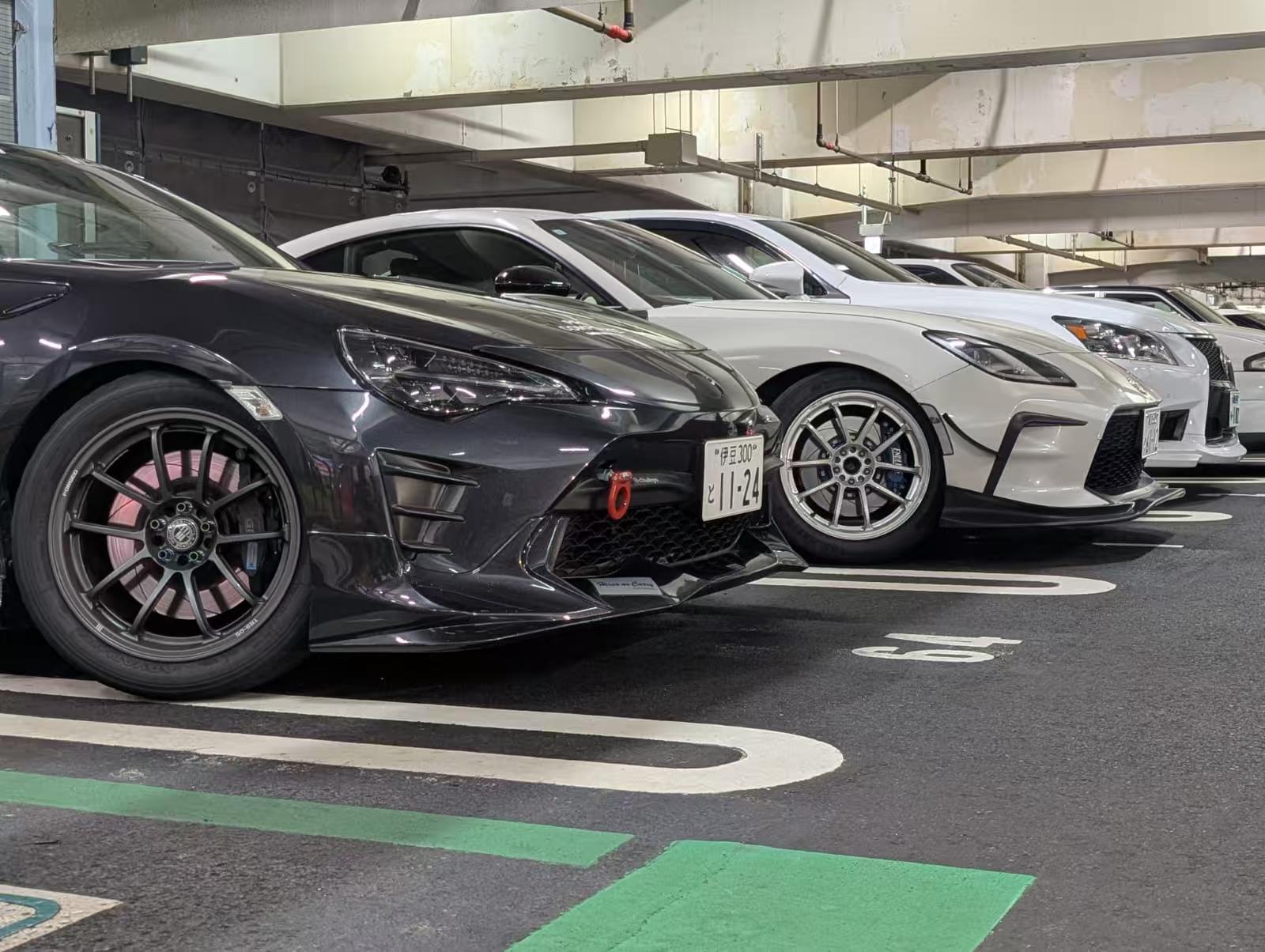

Stage 1 · Bespoke Design
The Wheel StartsWith Your Car
Before machining, the specification must be coherent: style, diameter, width, offset, PCD, centre bore, brake clearance, tyre plan, concavity, and finish direction.
Designed in Singapore, made for your exact platform
LFI’s design process balances performance, aesthetics, and durability around the actual vehicle. A beautiful forged wheel still needs the correct hub bore, bolt pattern, hardware seat, brake clearance, and usable tyre plan.
- Brake clearance is reviewed before production.
- Offset is machined into the wheel instead of corrected later with spacers.
- Concavity is balanced against caliper clearance and spoke structure.
- Finish choice is considered early because surface work affects the production sequence.

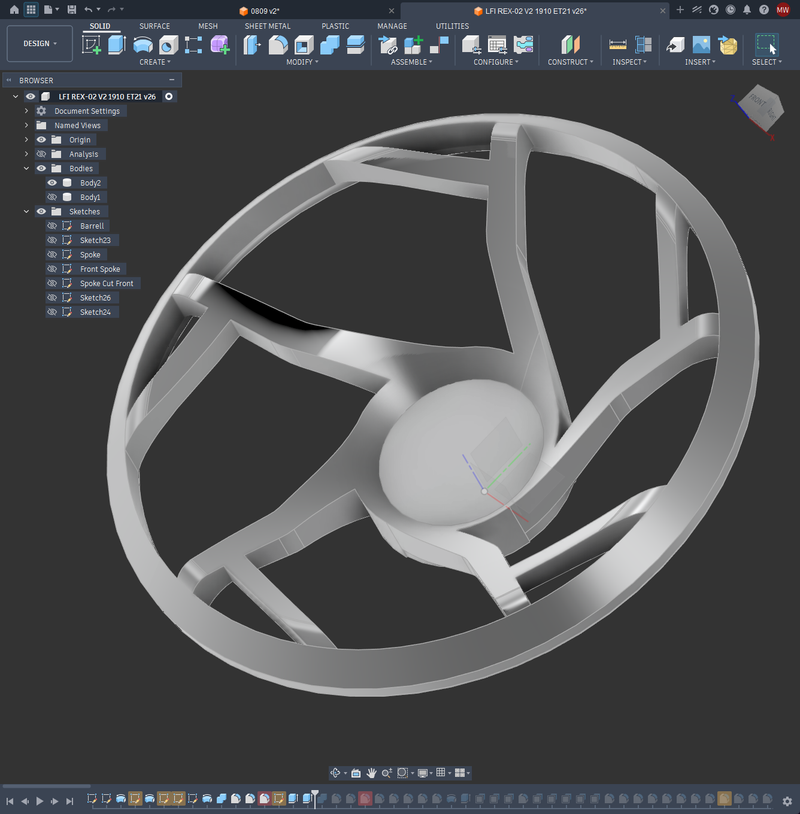

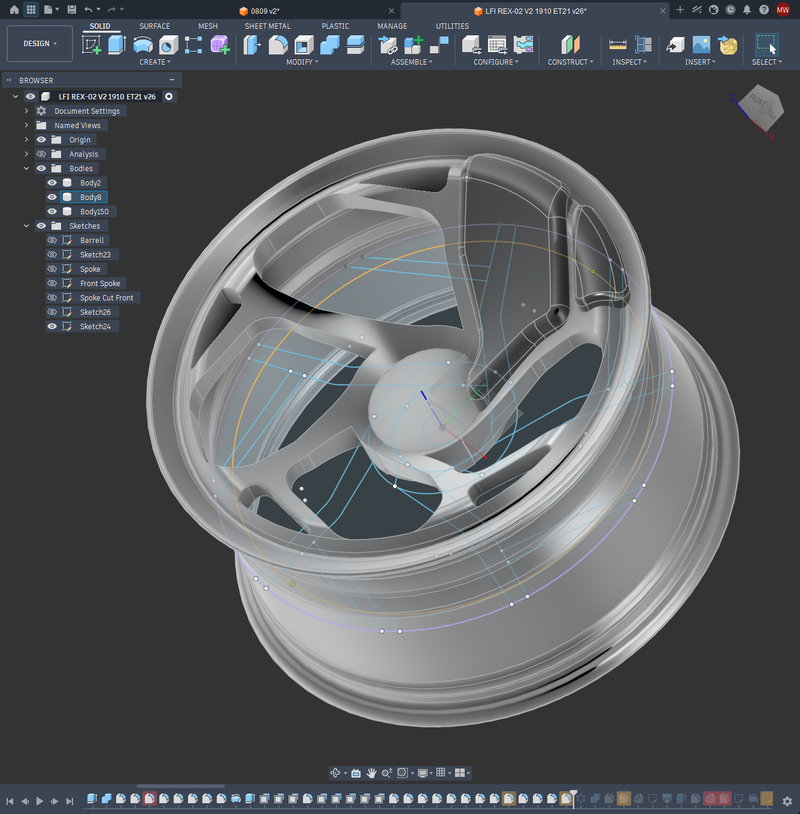

Design Desk · Kevin Wang

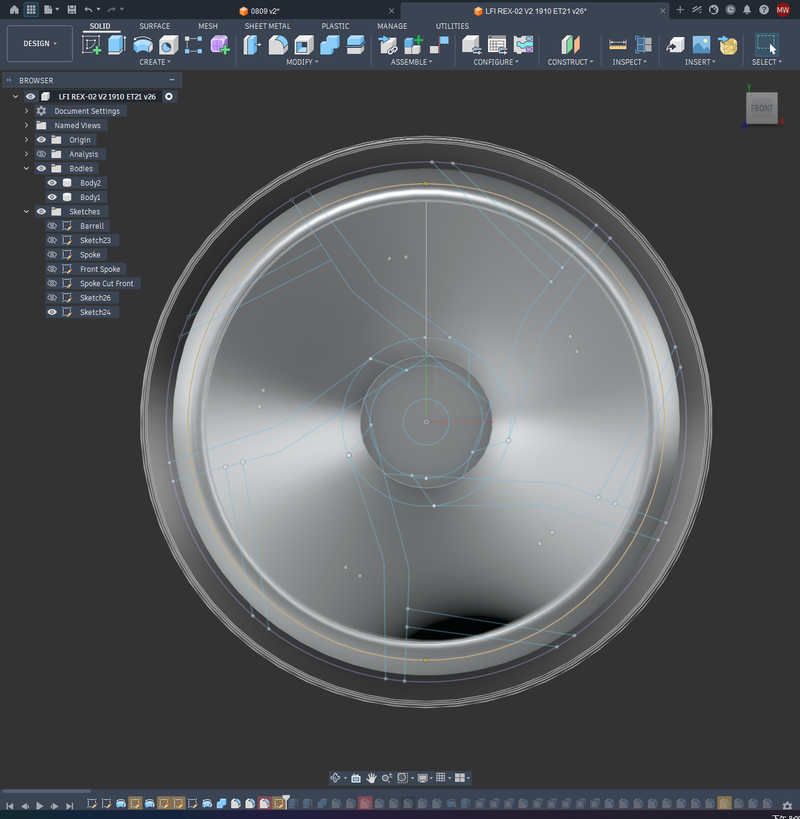

From Fitment BriefTo Wheel Architecture

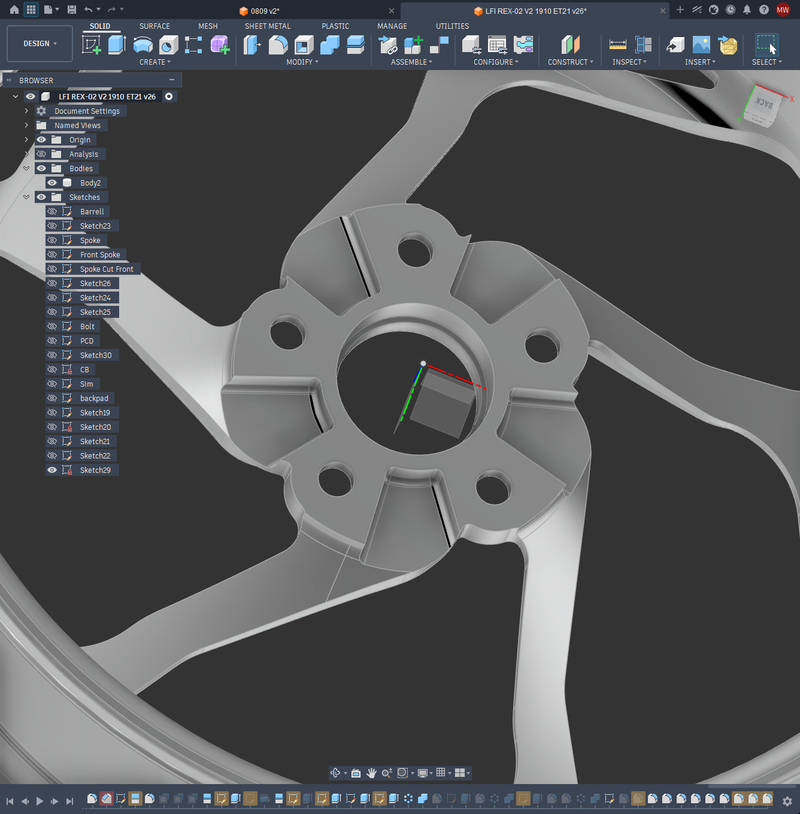

Once the fitment target is clear, the wheel is refined around structure, spoke direction, concavity, brake clearance, and machining feasibility. This is where a concept becomes a production-ready forged wheel.
A forged wheel is not just a face design. It must mount correctly, clear the brakes, support the vehicle, fit the tyre, and look right on the actual car.

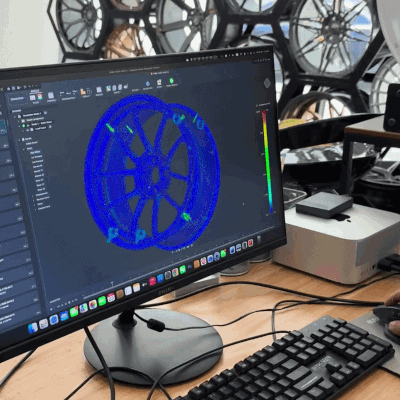

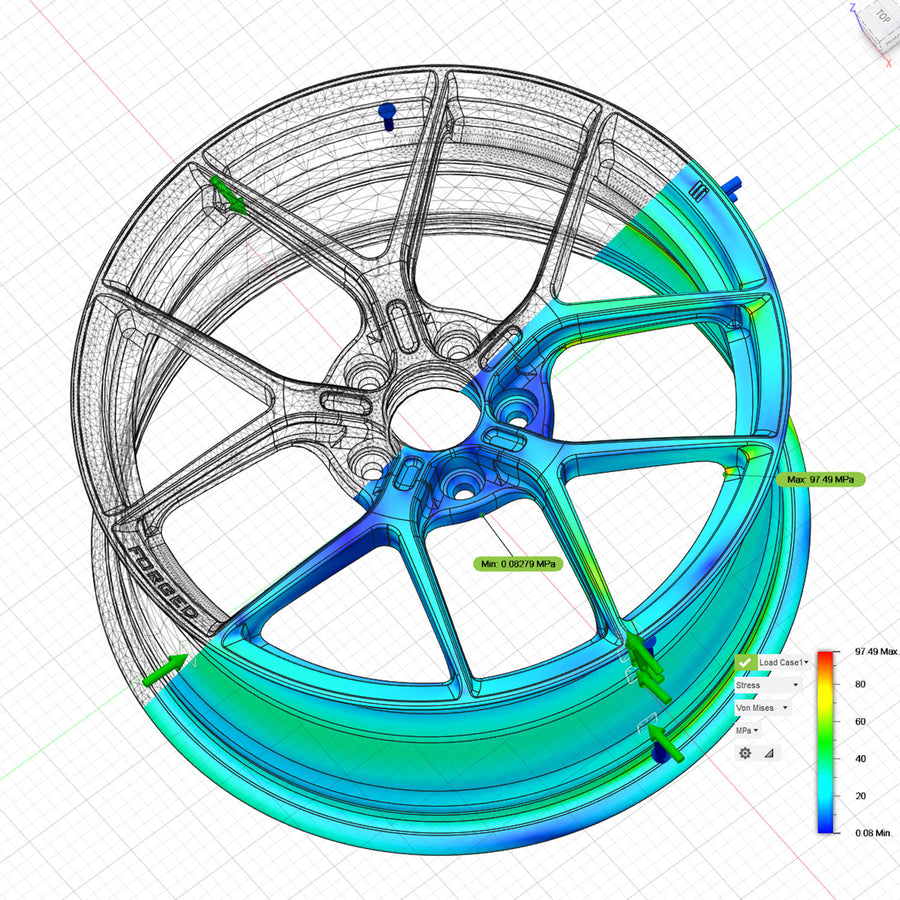

Stage 2 · FEA Review
Proven BeforeMachining Begins
FEA is not a decorative screenshot. It validates how the draft behaves before a forged blank is committed to CNC machining.
Vehicle-specific engineering review
LFI reviews stress concentration around the spoke root, hub pad, lug pocket, barrel transition, bead-seat areas, and load-bearing features. When the application requires it, the model can include radial load, tyre sidewall reaction, and torque loading.
- Identifies over-thinned spoke or hub areas before machining.
- Enables lightweight pocketing without cutting away critical material.
- Produces a stronger engineering trail for bespoke, one-off specifications.
- Customers can request a PDF engineering report for their build.
Customer-facing note: FEA does not replace physical testing, correct material selection, or good manufacturing control. It supports the design process before production starts.
Stage 3 · Forged Blank Selection
Strong Wheels StartBefore CNC
A forged wheel starts with the blank. Geometry, material condition, size family, and traceability all affect the outcome.
Why blank choice affects cost and quality
The wrong blank size or geometry increases machining time, reduces material efficiency, and compromises the intended design. Premium forged wheel production depends on aluminium grade, the blank ecosystem, tooling strategy, and machining route — not just one of them.
- Blank origin and production tracking before machining.
- Correct blank family selected for the required wheel architecture.
- Production labels help connect material, machining, and QC stages.
- Traceability supports repeatability across future orders and design families.

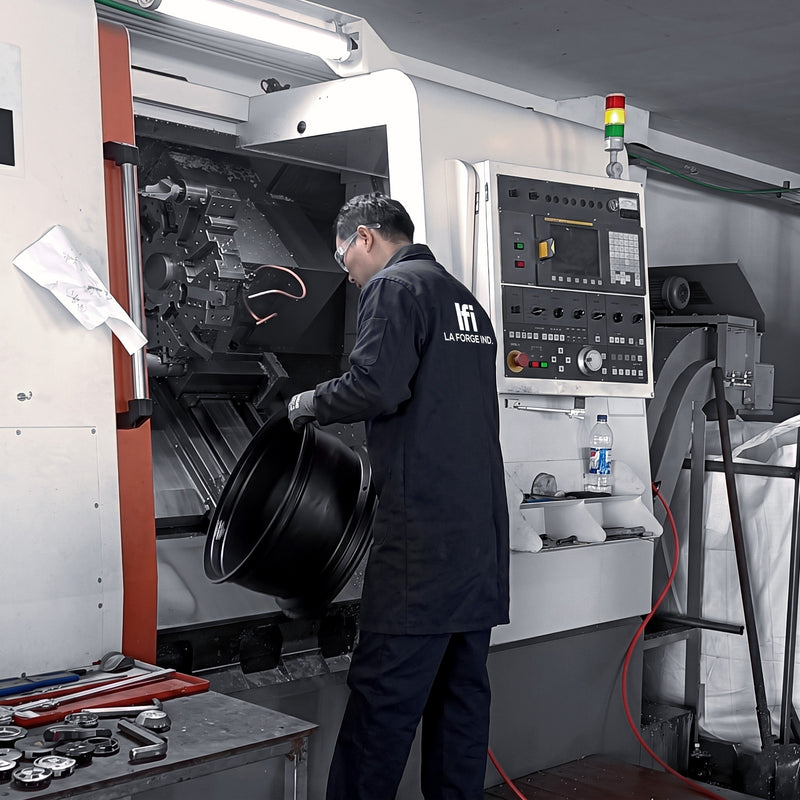

Stage 4 · Profiling & Lathe Turning
Perfect Roundness Before Face Machining

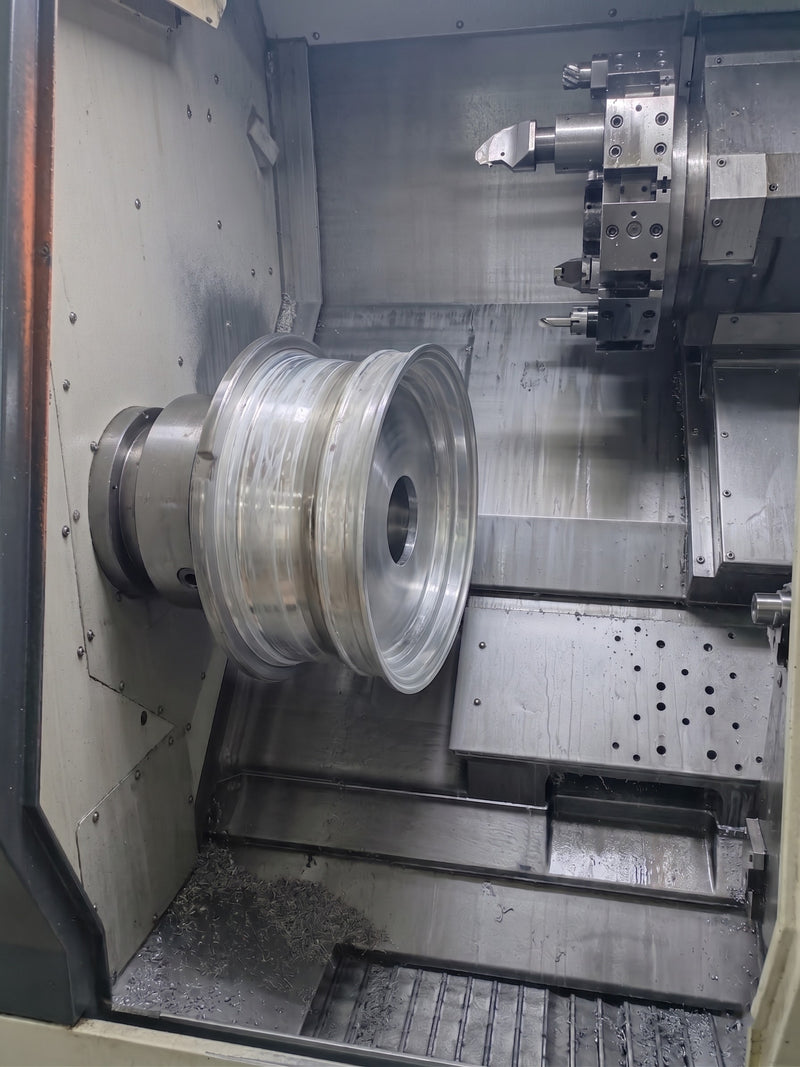

Before face machining, the forged blank is turned on a CNC lathe. Rotational centre, inner and outer profiles, width, offset, and the mounting foundation are established here.

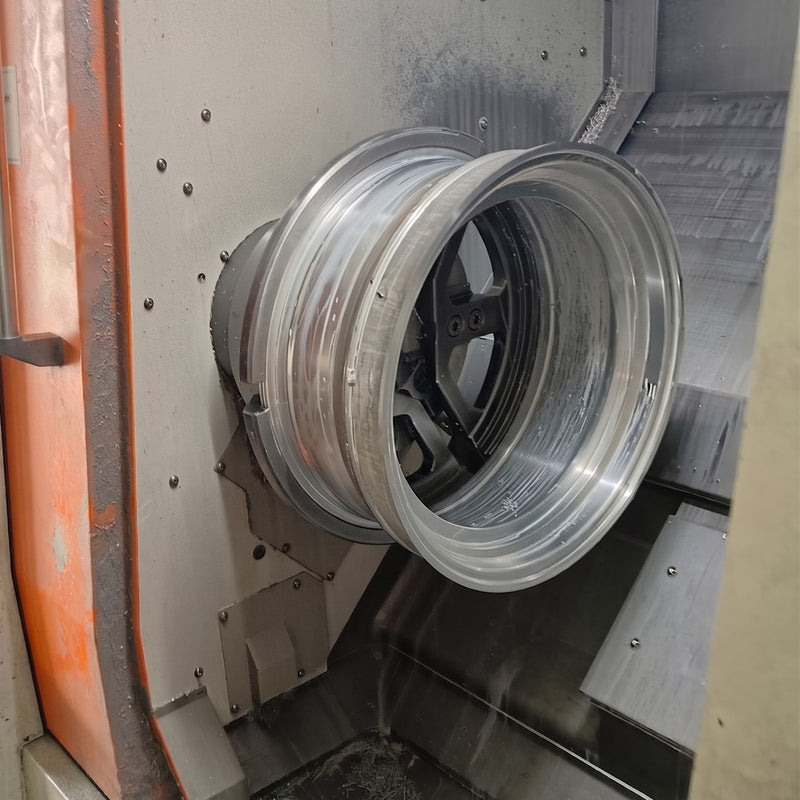

Perfect roundness via CNC lathes
High-rigidity CNC lathes shape the forged alloy blank. Precision-formed inner and outer profiles create a concentric foundation for a smoother, cleaner-running wheel.
Locked-in fitment: J and ET values
Width (J value) and offset (ET value) are machined to ±0.05 mm. This produces a precise, vehicle-specific fitment — not a generic size corrected with spacers.
Vibration-free foundation
By establishing a clean rotational centre axis and removing forging flash early, lathe turning creates the foundation for accurate dynamic balancing and stable high-speed performance.
Stage 5 · CNC Manufacturing

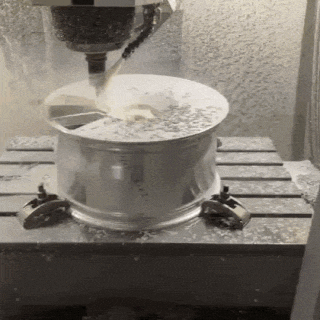

3 & 5-Axis CNCPrecision Machining

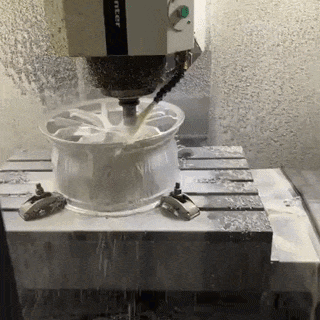

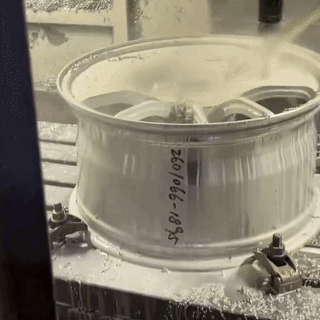

LFI forged wheels are cut from forged blanks using 3- and 5-axis CNC machining. The outcome: consistent geometry, controlled wall thickness, accurate fitment, and a balanced final wheel.
Flawless finish via 3 & 5-axis machining
Precision machining helps control surface quality, spoke geometry, lug pockets, barrel profiles, centre bore, and mounting faces.
Lightweight structural integrity
Deep pocketing and beam structuring are only valid when the remaining material supports the actual load path.
Efficient bespoke production
LFI's manufacturing process is built for custom orders. Special width, offset, PCD, and finish choices are part of the standard workflow — not exceptions.

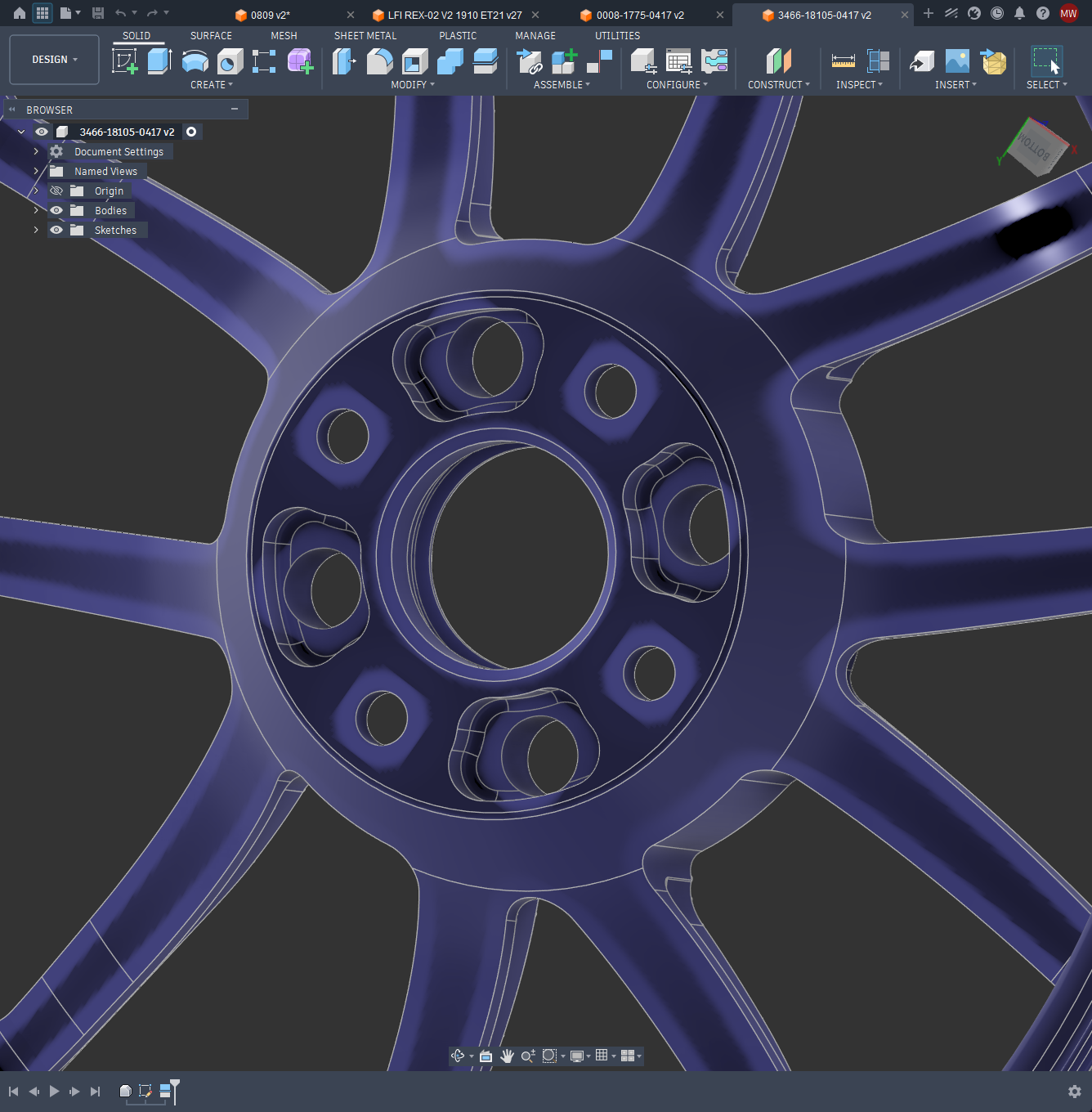

Stage 6 · Lightweighting
The ForgedAdvantage
Forged construction allows the wheel to be sculpted more intelligently than cast. The target is useful weight reduction in areas that do not weaken the wheel's actual load path.
Extreme lightweighting without blind material removal
The forged advantage is not only strength — it is the ability to machine the wheel around the exact use case: spoke shape, pad pocketing, barrel detail, lug pockets, and weight-saving cuts that still respect the structure.

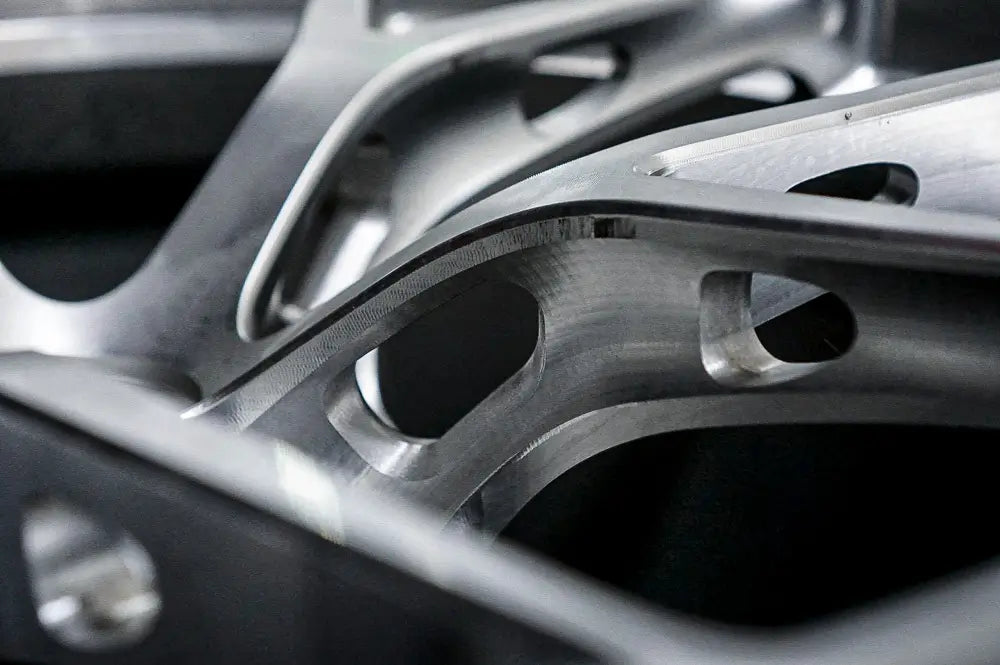

- Side-milled spokes can reduce weight while preserving stiffness.
- Mounting-pad pocketing can reduce rotational mass at the centre.
- Backpad and spoke machining are reviewed alongside the FEA target.
- Weight reduction is balanced against vehicle load, tyre grip, and brake package.

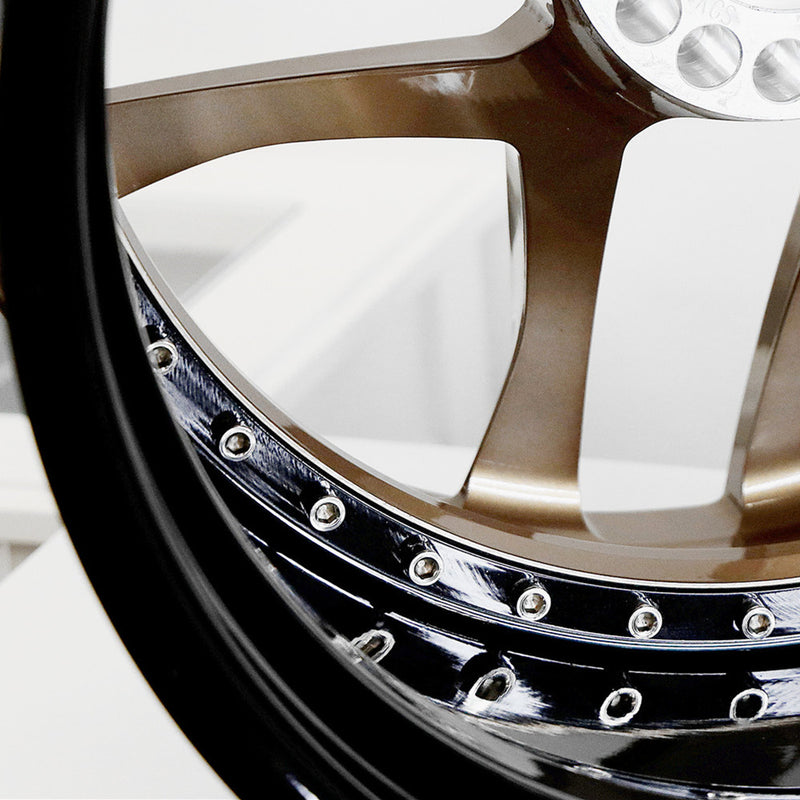

Stage 7 · Finishing

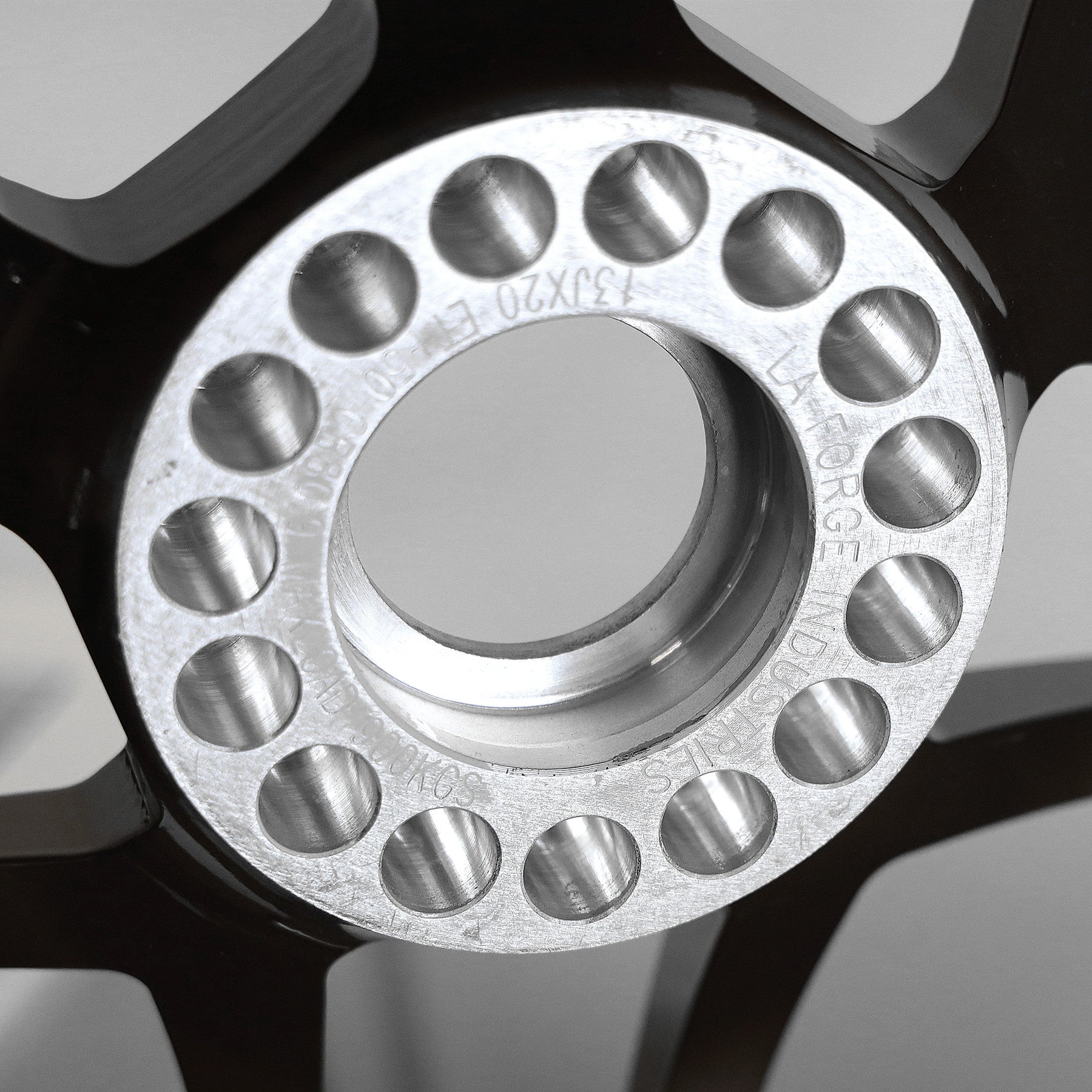

Surface Finish Color and Detail

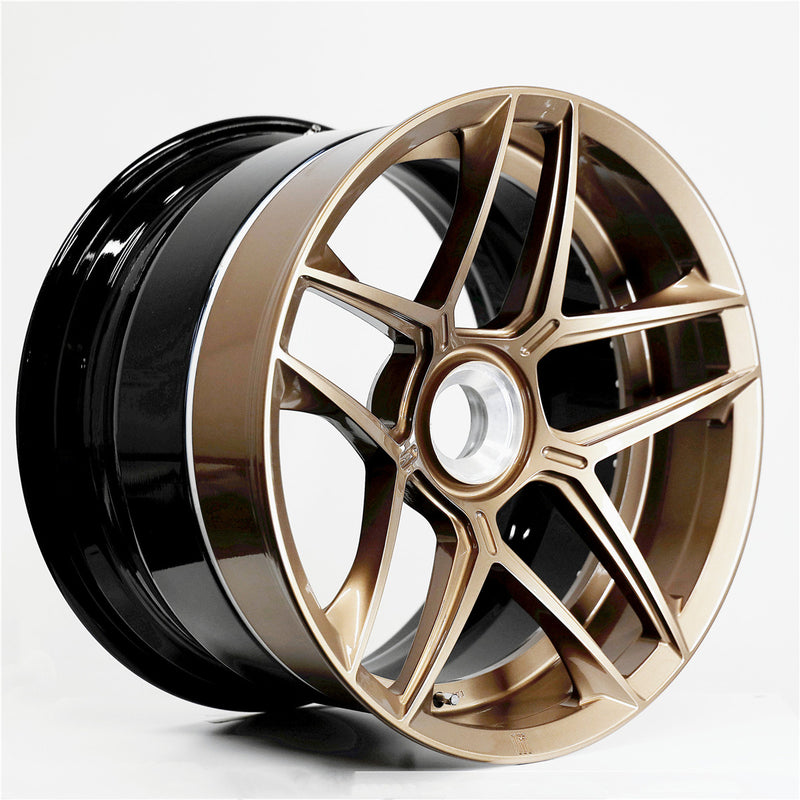

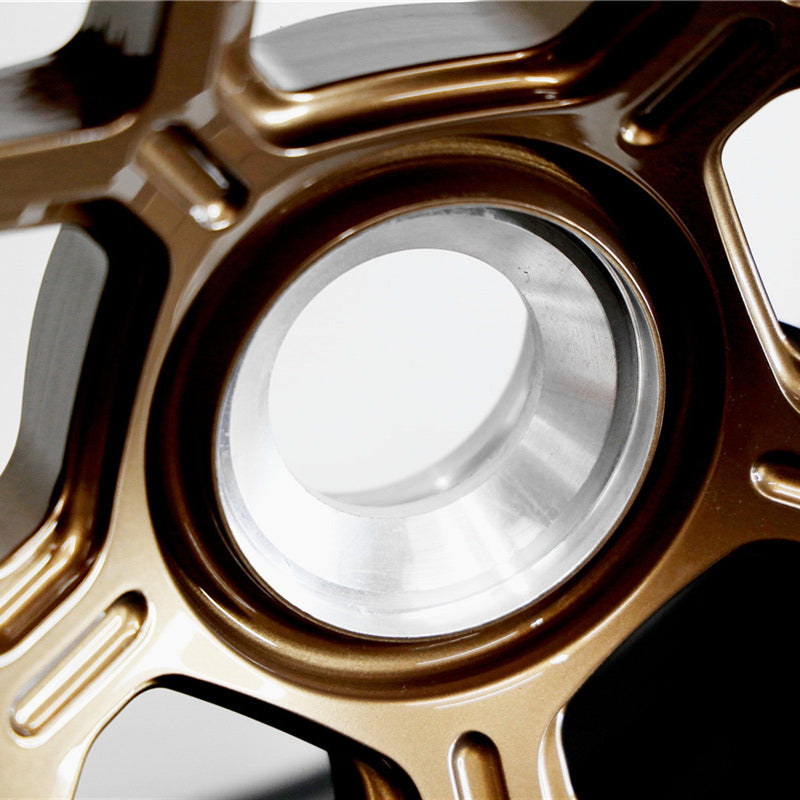

The final wheel is not finished when the toolpath ends. Surface preparation, color application, clear coat, polish, brushed detail, and inspection all affect how the wheel looks in real ownership.

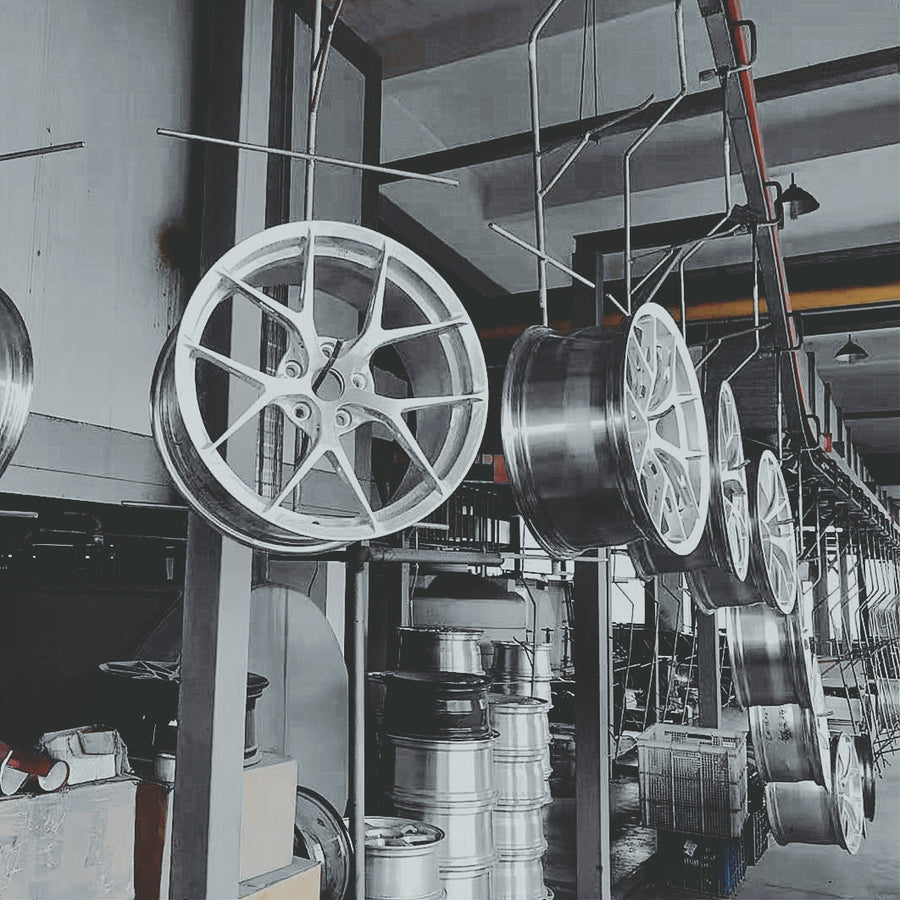

Powder-coated surface
Durable powder-coated options are available for customers who want a strong finish for regular road use.
Painted finishes
Gloss, satin, metallic, and color-matched finishes can be selected to suit the car’s body color and style.

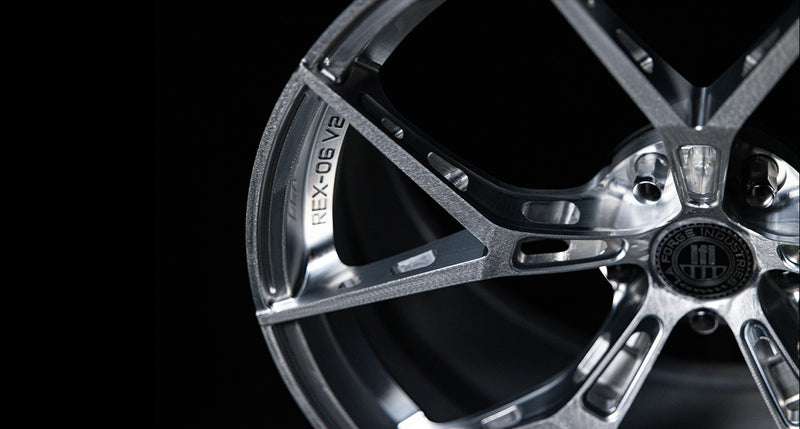

Brushed and polished finishes
Hand-brushed and high-polish surfaces can highlight spoke shape, concavity, and machining detail.
Special bespoke options
Tinted clear, two-tone, exposed machining, and custom finishes can be discussed depending on design and use case.
Different finishes have different care demands. Choose around how the car is used, cleaned, stored, and driven — not just how the finish looks on a sample swatch.

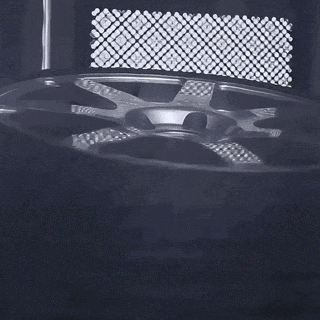

Stage 8 · Testing & Validation
ComplianceClearly Explained
Custom forged wheels exist in thousands of diameter, width, offset, PCD, centre bore, load rating, and finish combinations. LFI separates external lab testing, reference specification validation, internal checks, and customer-specific engineering review — so the compliance position stays clear.
External reference testing
Selected high-volume reference specifications can be submitted for independent third-party testing, including TÃœV SÃœD lab reporting and JWL conformity targets where applicable.
Same design family discipline
Custom variants within the same design family are produced using the same engineering, material, machining, and manufacturing standards, even when every minor offset or width variation is not separately certified.
Why testing still matters after FEA
FEA reviews stress behaviour before machining. Physical testing provides a second layer of confidence by checking performance under controlled test conditions.
- External reference testing for selected high-volume specifications.
- Internal validation for custom sizing, offset, and PCD variants.
- Same material, machining, and production discipline across the design family.
| Term | What it Means | How LFI Uses It |
|---|---|---|
| FEA Review | Digital stress and structure review before production. | Used to support bespoke wheel design, weight optimization, and application-specific validation. |
| Internal Validation | LFI’s engineering and manufacturing checks before wheels leave production. | Used across custom specifications where the wheel is produced to LFI’s engineering and material standards. |
| Third-Party Lab Testing | Independent testing of selected reference specifications. | Used for representative designs and high-volume specs where external lab reporting is commercially practical. |
| JWL / VIA / SAE / TÃœV | Different testing, conformity, or reporting frameworks used in the wheel industry. | LFI explains which framework applies to which claim rather than treating every term as the same thing. |
Important customer note: because even a 1 mm offset change or 0.5J width variation can create a different wheel specification, full third-party certification on every possible custom combination is commercially unrealistic. LFI’s approach is to be transparent about tested references while maintaining consistent engineering and production standards across the design family.
Stage 9 · QC and Delivery
Final Checks Before The Wheels Leave
Before delivery: final runout inspection, balance preparation, fitment verification, packing, and shipping coordination. For a bespoke forged wheel, the last mile matters as much as the design stage.

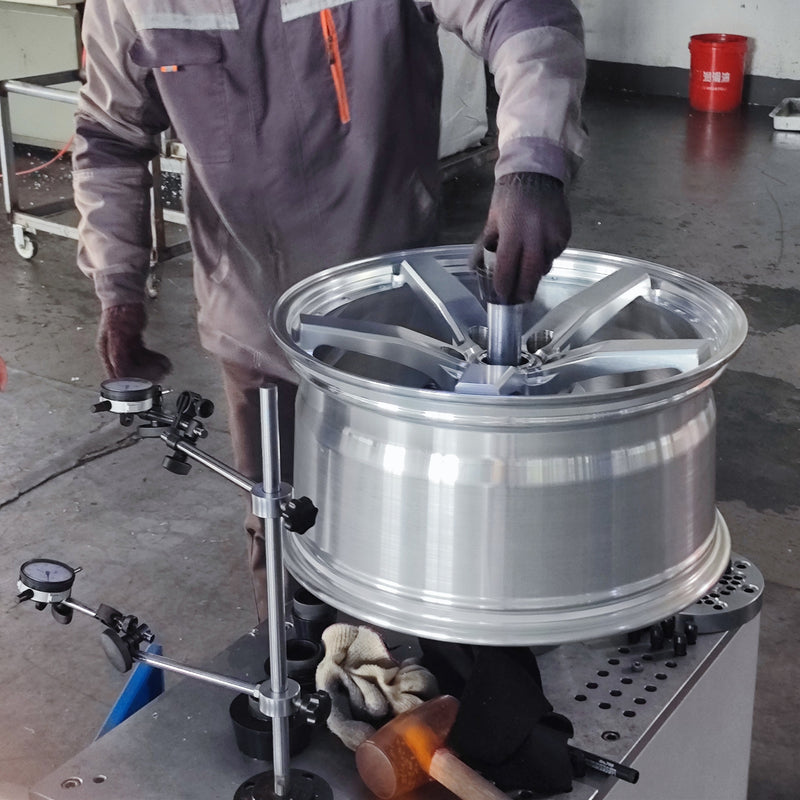

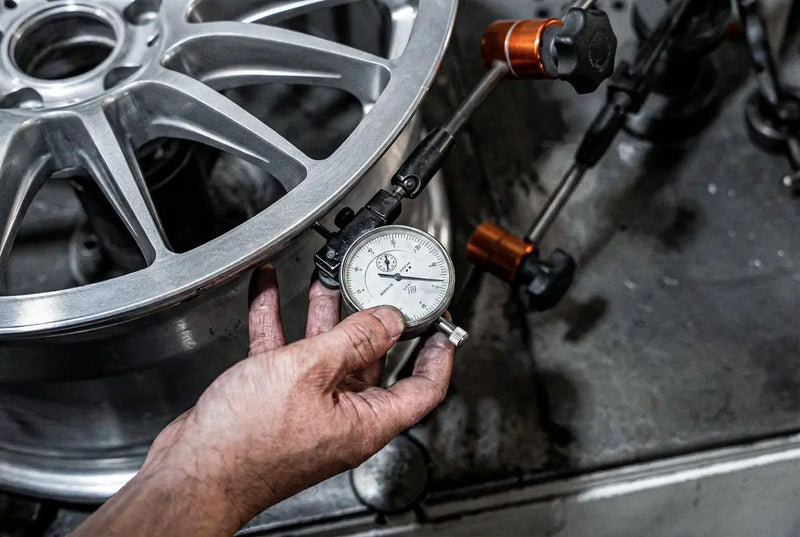

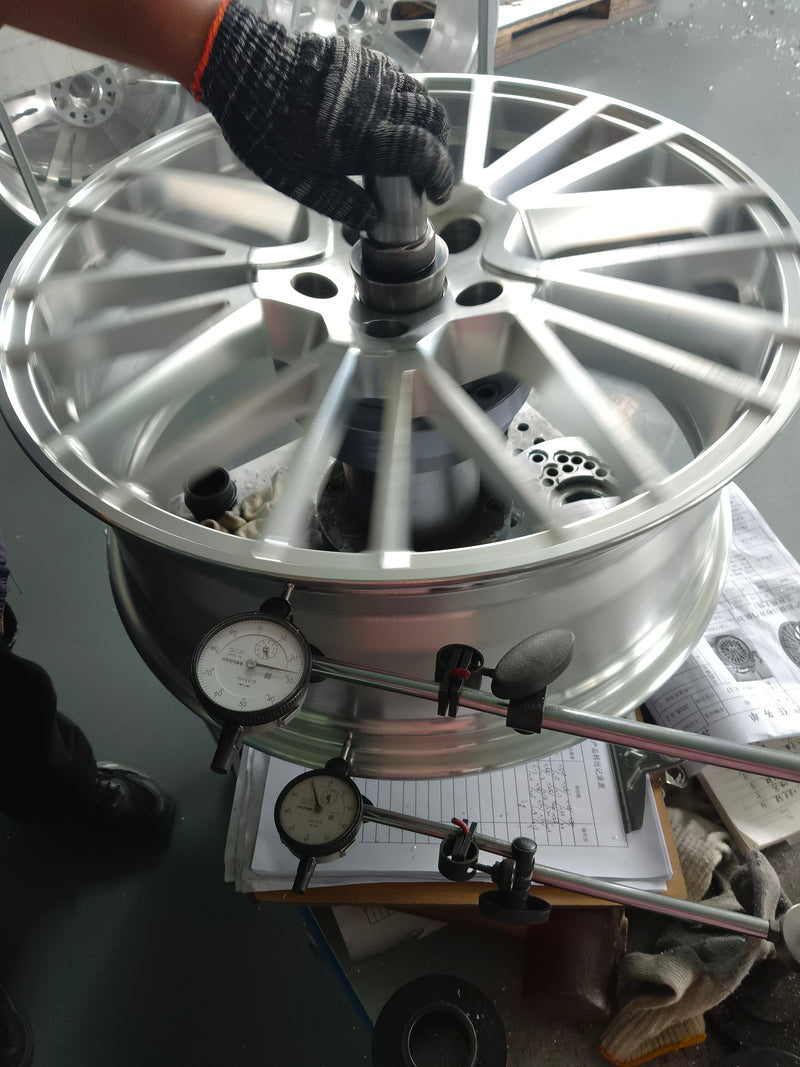

Runout verification
Final runout inspection confirms the wheel runs true before tyre mounting and delivery.
Dynamic balance preparation
The finished wheel is prepared for smoother high-speed use after tyre mounting and balancing.
Surface and packing check
Finish quality, coating coverage, visible edges, and machined details are reviewed before packing.
Insured global delivery
LFI supports Singapore consultation and worldwide forged wheel supply with trackable shipping coordination.
Ready to Start?
Send Us Your Car And Fitment Goal
Send us your vehicle, current wheel and tyre size, brake package, desired look, and a few photos. We turn that into a proper forged wheel specification.
Why La Forge Industries
You Are CommissioningPrecision Engineering
LFI builds custom forged wheels for owners who want more than a design render. The goal is a direct-fit wheel with the right look, weight, brake clearance, strength direction, and manufacturing discipline for the actual car.
For performance cars
BMW M, Porsche, Mercedes-AMG, Audi RS, Toyota GR, Subaru, MINI, and other performance platforms benefit from fitment-specific forged wheels.
For EV platforms
Heavy, high-torque EVs require stronger attention to load rating, brake clearance, tyre fitment, and unsprung mass.
For special builds
Track-focused, magnesium, deep concave, OEM+ and one-off fitments can be discussed as custom engineering projects.
Related Engineering Pages
Go Deeper IntoLFI Engineering
- Finite Element Analysis — why LFI uses FEA before machining bespoke forged wheels.
- Testing & Compliance — how LFI explains JWL, VIA, TÜV, SAE, selected lab-tested references, and internal validation.
- Why Radial Load FEA Alone Is Not Enough — a deeper article on combined load cases and realistic wheel stress.
FAQ
Common QuestionsAbout How LFI Wheels Are Made
Are LFI wheels fully custom made?
Yes. LFI forged wheels are made around the vehicle specification, including diameter, width, offset, PCD, centre bore, brake clearance, finish, and intended use.
Does LFI run FEA for every custom order?
LFI uses vehicle-specific engineering review and FEA validation before production where the application requires it, especially for bespoke designs, lightweight targets, EV platforms, and performance builds.
Can I request my FEA report?
Yes. Customers can request an engineering PDF report showing stress-mapping and validation details for their bespoke wheel specification.
Why does LFI focus on zero-spacer fitment?
Spacers add hardware stack-up, weight, and another tolerance layer. LFI’s goal is to machine the correct offset and brake clearance directly into the wheel specification wherever possible.
Are LFI wheels tested?
Selected high-volume reference specifications are independently tested under third-party lab reporting, and custom specifications are produced to the same engineering, material, and manufacturing standards within their design family.
How long does production take?
Production timing depends on design complexity, finish, queue, shipping destination, and whether additional engineering review is required. Once the design and validation are confirmed, bespoke forged wheel production is typically much faster than traditional custom-wheel lead times.
What information should I send before ordering?
Vehicle model, year, current wheel and tyre size, brake package, desired wheel size, tyre target, ride height, fitment goal, finish direction, centre-cap preference, and photos of the car.
