Magnesium RE: Beyond 6061-T6 Aluminum and Standard AZ80

Engineered for the crucible of motorsport. By alloying premium AZ80-T6 magnesium with Rare Earth elements, LFI eradicates high-temperature creep and crack propagation, delivering an ultra-lightweight forged wheel without compromise.

AZ80-T6 Magnesium RE
12,000-ton forging
Track heat stability
EV torque-ready
NDT inspected
Magnesium forged wheels

Browse Magnesium Wheels Ask LFI about Magnesium RE

~35% lighter than forged 6061-T6 aluminum baseline.

12,000T forging force used for dense magnesium wheel blanks.

RE rare earth elements improve high-temperature stability.

Comparison

Numbers atA Glance

How LFI AZ80-T6 Forged Magnesium with Rare Earth compares with 6061-T6 Aluminum and Standard AZ80

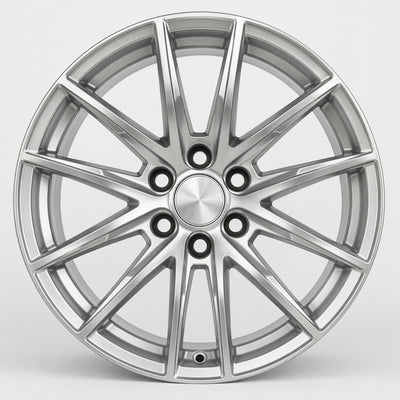

Baseline Material

Forged Aluminum
6061-T6

Weight: Baseline
Forging: 6,000–12,000 Tons
Tensile Strength: ~300 MPa
Yield Strength @30°C: ~270 MPa
Yield Strength @200°C: ~110 MPa
Strength-to-Weight @30°C: 102 kN·m/kg
Elongation: 12–17%
Grain Structure: Aligned Flow

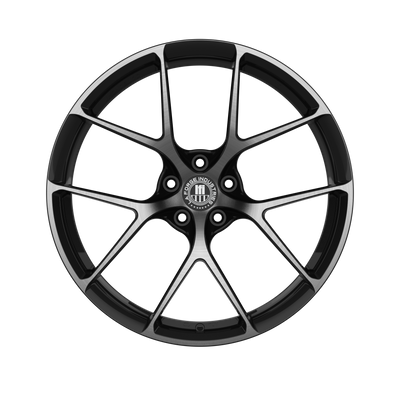

LFI Magnesium RE

LFI Forged
Magnesium RE

Weight: ~35% Lighter
Forging: 12,000 Tons
Tensile Strength: >300 MPa
Yield Strength @30°C: ~250 MPa
Yield Strength @200°C: ~140 MPa
Strength-to-Weight @30°C: 137 kN·m/kg
Elongation: 10–12%
Grain Structure: Uniform grain distribution

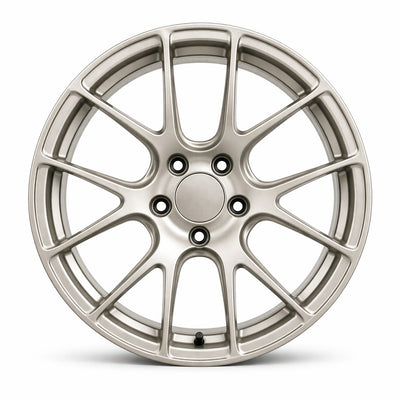

Standard Magnesium

Normal Forged
Magnesium

Weight: ~25% Lighter
Forging: 6,000 Tons Avg.
Tensile Strength: ~280–290 MPa
Yield Strength @30°C: ~200 MPa
Yield Strength @200°C: ~60 MPa · Danger zone
Strength-to-Weight @30°C: 111 kN·m/kg
Elongation: 5–7% · Brittle
Grain Structure: Uneven grain structure

The "Issue": HEAT

Standard AZ80Softens Under Heat

Standard AZ80 magnesium alloy gets its strength from a specific intermetallic compound called Mg17Al12.

The problem is that Mg17Al12 has a relatively low melting point. When the wheel gets hot (like during heavy track braking where radiant heat from the rotors bakes the wheel barrel), this compound begins to soften at around 120°C (248°F). As it softens, the grain boundaries of the magnesium begin to slide against each other. The metal loses its structural rigidity and becomes susceptible to "creep" (slow, permanent deformation under stress).

Enter the Rare Earth Elements (like Cerium, Neodymium, or Yttrium):

When RE elements are added, they are incredibly "hungry" for aluminum. They steal aluminum away from the magnesium to form entirely new, highly complex precipitates (such as Al1RE3 or Al2RE).

These new RE-Aluminum compounds are drastically different:

High Melting Points: They remain rock-solid and stable well past 250°C.
Grain Boundary Pinning: Because they don't soften, these RE precipitates sit right on the grain boundaries of the metal and act like microscopic anchors. Even when the wheel gets very hot, they physically block the grain boundaries from sliding. Metallurgists call this "pinning."

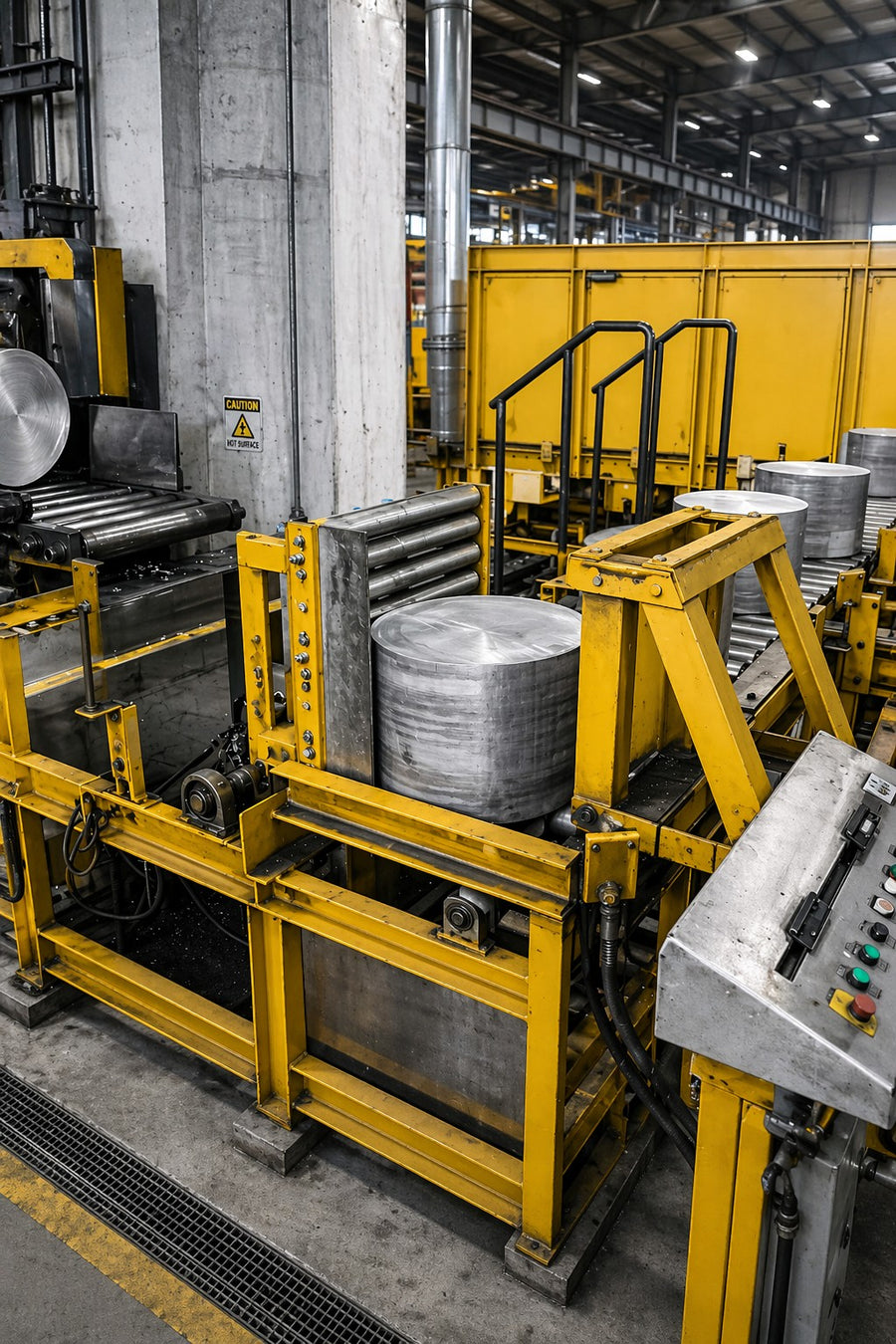

Magnesium billet processing for forged wheel production — **Magnesium billet processing** Material preparation matters before forging begins.

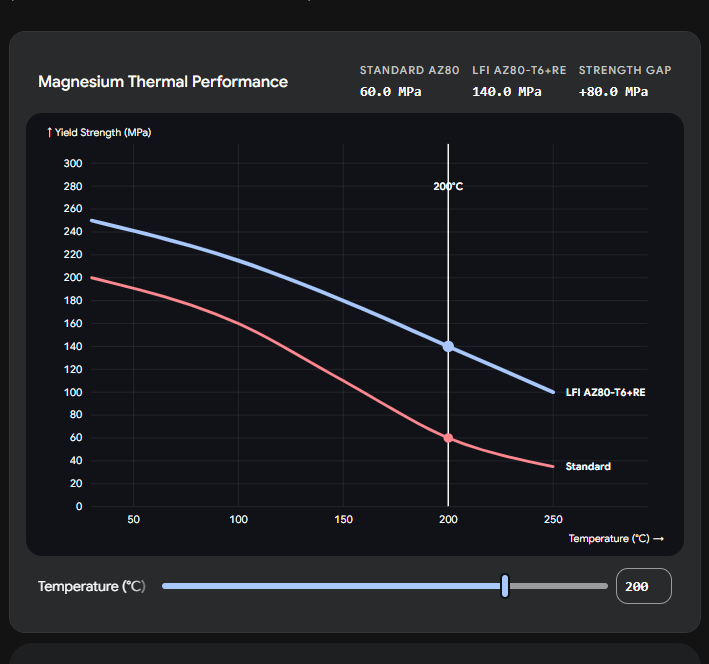

Graph comparing magnesium thermal performance with temperature — **Thermal performance gap** RE additions help retain high-temperature strength where normal AZ80 drops away.

LFI REX-06 V2 forged wheel portrait photo used to illustrate magnesium wheel performance advantage — **Performance wheel architecture** Rare Earth magnesium is about keeping the lightweight advantage stable when heat and load rise.

"To What Degree": The Performance Gap

Rare Earth ChangesHow Magnesium Survives Heat

Adding rare earth elements doesn't necessarily make the wheel significantly stronger at room temperature, but it drastically changes how the wheel survives extreme heat.

Operating Temperature Threshold: Standard AZ80 begins to lose significant yield strength rapidly above 120°C. AZ80 with RE additions pushes that safe operating threshold up to 150°C–200°C (300°F–392°F).
Creep Resistance: Under a constant heavy load at 150°C, a standard AZ80 blank will permanently deform (creep) at a rate exponentially faster than an AZ80+RE blank. The RE addition can improve creep resistance by 10x to 100x depending on the specific element and concentration.
Yield Strength Retention: At high track temperatures, the physical strength gap becomes massive.

Why LFI Magnesium Wheels Keep You Safe on a Track

Surviving ExtremeTrack Temperatures

Track driving subjects your wheels to extreme radiant heat. With brake rotors reaching up to 800°C (1,500°F), the inner wheel barrel becomes an oven operating at 200°C (392°F). Here is why LFI's Rare Earth (RE) alloy matters for your safety:

Yellow BMW M4 on track showing red hot brake rotor heat — **Track heat** Motorsport braking can turn the wheel barrel into a heat-soaked environment.

Zero High-Temperature Creep: Standard magnesium deforms above 120°C. Our RE elements act as microscopic thermal anchors, locking grain boundaries to entirely prevent structural warping.
Locked Lug Nut Torque: Heat causes standard alloys to soften and expand, loosening bolts. LFI's RE matrix maintains absolute compressive strength, keeping your torque securely locked lap after lap.
Active Heat Sink Capabilities: Magnesium naturally pulls destructive heat away from your brakes. LFI's alloy absorbs this extreme thermal load without sacrificing its structural rigidity.
Thermal Fatigue Resistance: Violent heat cycling on the track causes micro-cracking in generic alloys. Our RE integration drastically improves thermal fatigue thresholds, halting crack propagation and multiplying wheel lifespan.

The Bottom Line: LFI's RE additions ensure your wheels will never warp, creep, or fail when you dive into heavy braking zones.

Browse Magnesium Wheels

Zero-Compromise EVs:

Mastering MassiveTorque and Heavy Loads

Electric vehicles rewrite the rules of automotive physics. The combination of instant torque and the immense curb weight of battery packs creates a hostile environment where standard commercial magnesium is often too brittle, making it prone to fracturing under sudden shock-loads.

Tesla EV on racetrack showing high torque electric vehicle load case — **EV torque and mass** Heavy battery platforms add a different kind of demand to forged-wheel design.

LFI solves this with their proprietary AZ80-T6+RE magnesium alloy, delivering the extreme specific strength required to handle hyper-EV loads without sacrificing safety.

Engineered Toughness: Rare Earth (RE) elements refine the metal's grain structure, eliminating inherent brittleness so the wheel can safely absorb the violent shock of instant EV torque.
Extreme Specific Strength: A rigorous T6 heat treatment (solutionizing and artificial aging) maximizes tensile strength, yielding a strength-to-weight ratio that rivals titanium.
Hyper-EV Load Ratings: Pressed using a highly dense 12,000-ton forging process, the structural integrity easily supports the massive load ratings required for heavy battery packs under high-G cornering.
Maximized Range & Handling: Slashing unsprung, rotational mass allows the suspension to effectively manage the heavy chassis, restoring nimble steering feel while maximizing acceleration and battery range.

Browse Magnesium Wheels

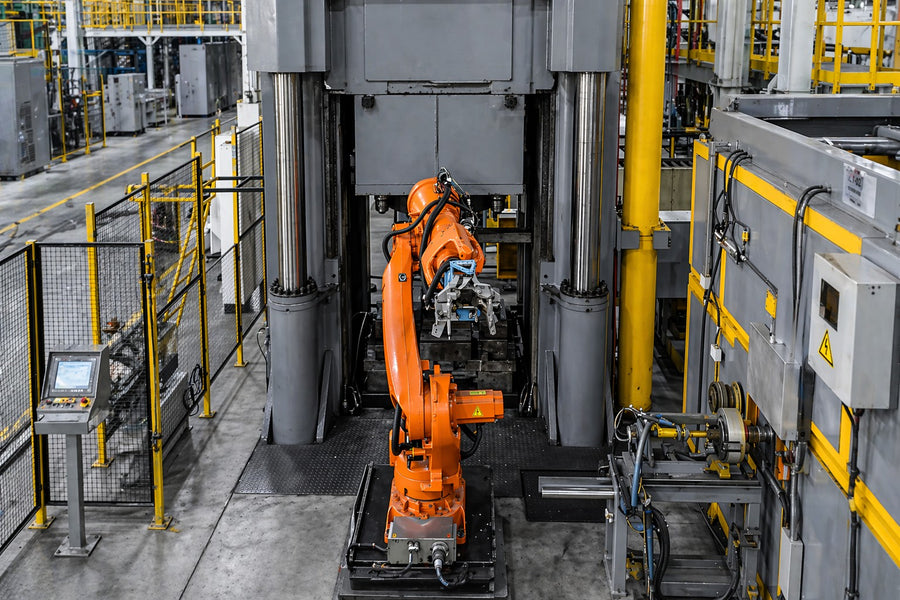

LFI magnesium forging process — **Magnesium forging process** Controlled heat and massive pressure shape the magnesium blank.

Manufacturing

The Manufacturing Edge:Precision Heating and 12,000-Ton Forging

Transforming our advanced AZ80+RE alloy into a hyper-EV capable wheel requires absolute thermal precision and immense mechanical force.

Precise 400°C Thermal Control: Raw magnesium billets are heated to exactly 400°C to achieve maximum ductility. This strict thermal window prevents internal porosity and grain-boundary defects common in unevenly heated metals.
12,000-Ton Single-Stroke Forging: The billet is formed into a rough wheel blank using a massive 12,000-ton hydraulic press. Utilizing a single-stroke action—rather than multiple smaller presses—prevents disruption to the metal's internal structure.
The Structural Result: This instantaneous, extreme pressure fundamentally compresses and aligns the metal's grain structure. It locks in superior tensile strength, extreme fatigue resistance, and an unmatched strength-to-density ratio.

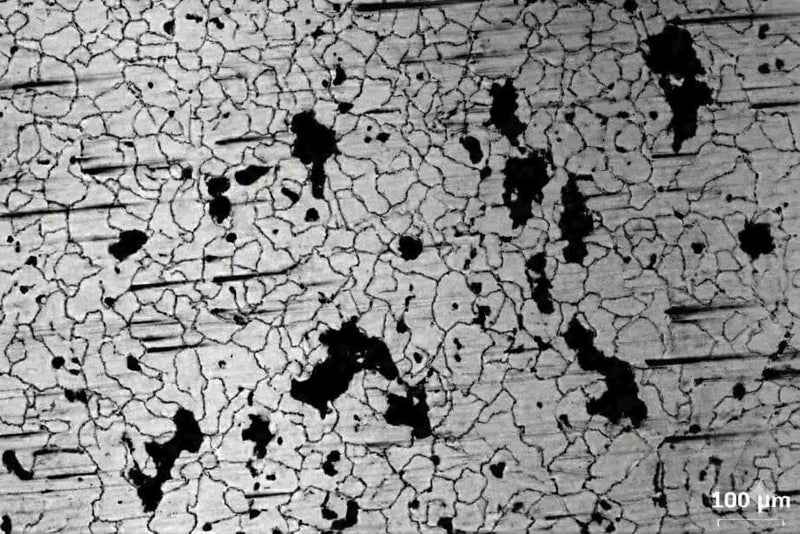

Normal forging magnesium grain structure diagram

Normal Process

Normal Forging Magnesium Processes

Porous, random grain boundaries.
Weaker structural integrity.
Grain size ≥ 50 μm.

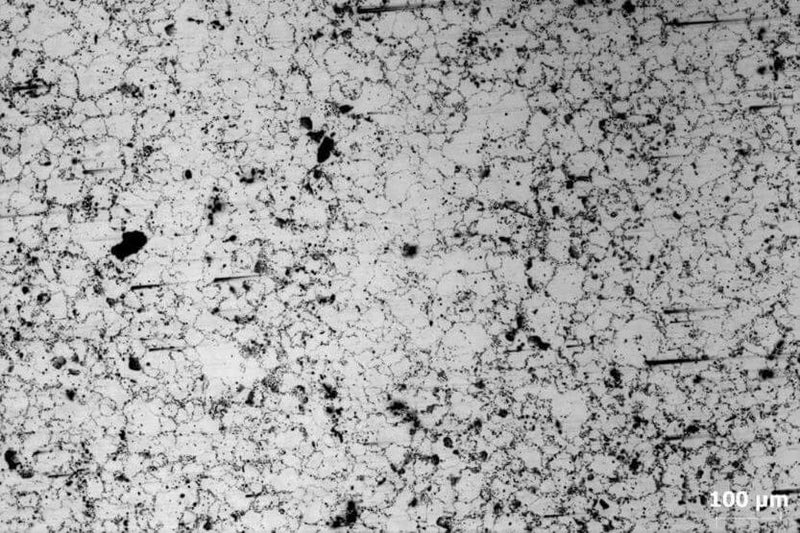

LFI forging magnesium grain structure diagram

LFI Process

LFI Forging Magnesium Processes

Uniform grain distribution with no apparent porosity.
3x Impact Resistance.
Grain size ≤ 40 μm.

Inspection

Quality Control& NDT

To guarantee structural integrity for extreme track and EV loads, LFI utilizes rigorous Non-Destructive Testing (NDT) on every forged magnesium blank:

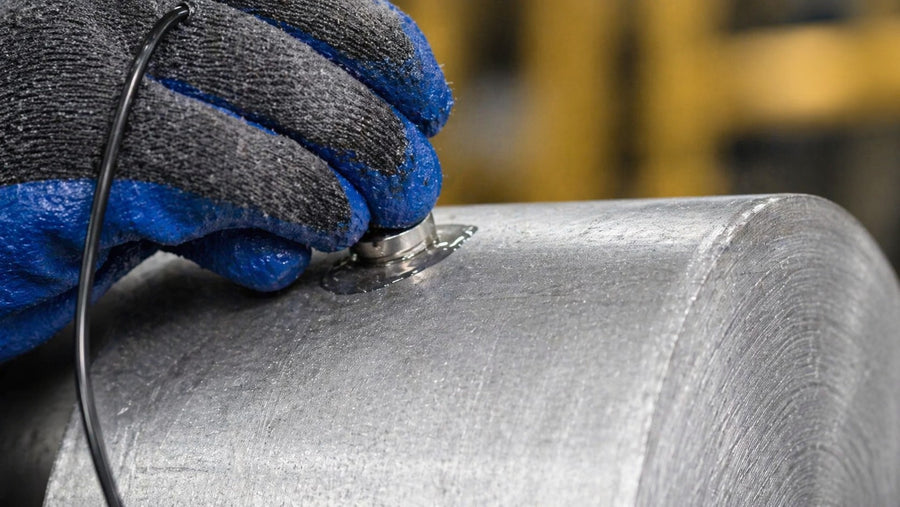

Ultrasonic Testing (UT): High-frequency sound waves scan the metal's core to detect and reject hidden internal anomalies, such as porosity or material inclusions.
Dye Penetrant Inspection (DPI): Specialized liquid dyes expose invisible, microscopic surface-level stress cracks or structural flaws.

This dual-testing protocol verifies 100% material safety and reliability.
