Tesla Model Y Forged Wheel Fitment Guide: Gen 1 & Gen 2 “Juniper”

Premium forged aluminum and AZ80+RE magnesium EV wheels, engineered in Singapore for heavy EV applications and supplied to customers across Japan, the United States, Australia, Singapore, China, Malaysia, and other global markets.

Tesla Model Y with LFI REX-06 V2 forged wheels

5x114.3 PCD 64.1 mm Center Bore M14x1.5 Hardware 890 kg Model Y Load Target ~1,800–2,200 Nm Torque Load Case Forged Aluminum & Magnesium

Overview

Why Model Y Wheel Fitment Needs More Than Bolt Pattern Matching

Choosing the right wheel setup for a Tesla Model Y is not only about appearance. Because the Model Y is a heavy EV with high instant torque, correct wheel load rating, hub fitment, offset, tire sizing, and brake clearance are essential for safety, ride quality, and long-term durability.

This guide covers the key wheel fitment specifications for both the first-generation Tesla Model Y and the Gen 2 “Juniper” refresh, including bolt pattern, center bore, lug thread, torque specification, recommended offsets, tire sizes, and general Model Y brake-clearance considerations.

LFI manufactures bespoke forged aluminum, forged magnesium, and 2-piece forged wheel setups for Tesla Model Y owners who want lighter weight, accurate fitment, and a safer alternative to generic aftermarket wheels. Although LFI is headquartered in Singapore, its customer base and fitment database are international, with real-world builds and distribution support across Asia-Pacific, North America, and other key EV markets.

Quick Reference

Quick Tesla Model Y Wheel Specs

Bolt pattern / PCD5x114.3 mm

Center bore64.1 mm

Lug nut threadM14x1.5

Factory torque spec129 lb-ft / 175 Nm

Recommended wheel typeHub-centric forged wheel

LFI Model Y target890 kg per wheel

Important note: Always confirm brake clearance, tire load rating, offset, and hub-centric fitment before ordering aftermarket wheels for any Model Y variant.

Featured Case Study

Best Reference Build for Tesla Model Y Owners

This REX-06 V2 20-inch square build is the strongest quick-reference case because it shows the preferred Model Y formula: lightweight forged monoblock construction, 890 kg EV load target, 20x9.5 square usability, front-to-rear tire rotation, and strong visual stance without moving into harsher 21-inch tire sidewalls.

Featured Case Study

VehicleTesla Model Y 2025 Gen 1

Build RefINV2025-23-9722

Wheel ModelLFI REX-06 V2

Specs20x9.5 ET33 square

Tires255/40R20 or 265/40R20

Target Weight9.35 kg

Featured Build: REX-06 V2 Ultralight 20-Inch Square Setup

This setup was selected as the featured Model Y reference because it balances lightweight forged construction, EV load reserve, a practical 20-inch square layout, tire rotation, brake clearance, and a direct Buy / Enquire path to the matching LFI wheel model. The 20x9.5 ET33 square configuration gives a more aggressive stance than stock while maintaining the ability to rotate tires front-to-rear.

The 255/40R20 tire keeps the factory-style tire diameter, while 265/40R20 adds more rim protection and a slightly fuller sidewall appearance.

LFI REX-06 V2 20-inch square fitment on Tesla Model Y.

LFI REX-06 V2 forged wheel close-up on Tesla Model Y — Concave REX-06 V2 spoke profile with performance-oriented stance.

Buy / Enquire REX-06 V2

Recommended Fitments

Recommended Tesla Model Y Forged Wheel Setups

Use case	Wheel size	Offset range	Recommended tire size	Notes
Comfort and range	19x9.5	ET35–ET40	255/45R19	Best ride comfort and sidewall protection.
Best daily setup	20x9.5	ET33–ET35	255/40R20 or 265/40R20	Best balance of looks, comfort, and tire rotation.
Wider square setup	20x10	ET39	275/40R20	More grip and fuller stance; clearance should be checked.
Performance staggered look	Front: 21x9.5 Rear: 21x10.5	Front: ET28–ET30 Rear: ET38–ET40	Front: 255/35R21 Rear: 275/35R21	Aggressive fitment similar to factory Performance tire sizing.
Wider 21-inch staggered setup	Front: 21x9.5 Rear: 21x10.5	Front: ET33 Rear: ET40	Front: 265/35R21 Rear: 285/35R21	More muscular appearance; check clearance before ordering.

For most Model Y owners, LFI recommends a 20x9.5 square setup as the best all-round configuration. It gives the car a cleaner stance than 19-inch wheels, rides better than heavy 21-inch setups, and allows front-to-rear tire rotation.

Engineering Proof

Engineering Proof & Validation

LFI wheels are engineered for heavy EV use, with fitment, load capacity, brake clearance, and hub geometry reviewed before production. For Tesla Model Y applications, LFI uses an 890 kg per wheel target on selected forged specifications, giving a meaningful reserve over common 690 kg passenger-car wheels while keeping the claim proportionate to the Model Y’s roughly 2,000 kg curb-weight class.

Why Load Rating Matters on Tesla Model Y Wheels

The Tesla Model Y is heavier than many comparable combustion-engine SUVs because of its battery pack. It also delivers instant torque, which places additional demand on the wheel, tire, and suspension package.

Many aftermarket cast and flow-formed wheels are designed around common passenger-car minimum load ratings, with 690 kg per wheel frequently seen on 5x114.3 passenger-car applications. A 690 kg-rated wheel may meet the stated test requirement for that rating, but that does not automatically make it the best choice for a heavy EV such as the Tesla Model Y.

For Model Y owners, especially those using 20-inch or larger wheels, LFI recommends choosing wheels with a higher application-specific load target, proper EV tire pairing, correct center bore geometry, and verified brake clearance.

690 kg vs 890 kg vs 1,050 kg: Practical Model Y Load Margin

Tesla defines GAWR / TPMAM as the maximum distributed weight each axle can support. Depending on Model Y variant and market, the rear axle rating can be around 1,500–1,518 kg, which equals roughly 750–759 kg per rear wheel at the maximum rated axle load.

Using 759 kg per rear wheel as a conservative reference point, the difference between a common 690 kg passenger-car wheel and LFI’s 890 kg Model Y target becomes clearer:

Wheel load rating	Per-axle equivalent	Approx. margin vs 759 kg rear-wheel load	How LFI positions it for Model Y
690 kg	1,380 kg per axle	~9% below reference	Common on many passenger-car cast and flow-formed wheels, but below a conservative Model Y rear-wheel reference. Not LFI’s preferred Model Y target.
890 kg	1,780 kg per axle	~17% margin	LFI’s preferred Model Y target for selected forged road-use specifications, when properly tested and paired with the correct tire load rating.
1,050 kg	2,100 kg per axle	~38% margin	Reserved for heavier EV SUVs, heavy-duty applications, or larger platforms where vehicle mass and axle loading justify the extra reserve.

This comparison does not mean every 690 kg-rated wheel is automatically unsafe in every situation. The more accurate point is that a 690 kg passenger-car-style rating can sit close to, or below, the rear-wheel load reference for heavier Model Y variants. For the Model Y, especially on 20-inch or larger wheels, LFI recommends the 890 kg target as a stronger and more realistic application-specific margin for passengers, cargo, pothole impacts, high-speed driving, and repeated fatigue cycles.

EV-Specific FEA: Torque Load and Combined Stress Cases

Wheel strength is not only about vertical load rating. A basic radial-load FEA may show how a wheel behaves under vehicle weight, but it does not fully represent how an EV wheel is loaded during real driving.

The Tesla Model Y delivers high instant torque through the wheel during acceleration and deceleration. These torque loads pass through the hub pad, bolt seats, spoke roots, and rim barrel, creating stress patterns that may not appear in a simple static load simulation.

For selected Model Y forged wheel specifications, LFI considers EV-specific static torque load cases of approximately 1,800 Nm per wheel for normal heavy EV road-use builds and up to approximately 2,200 Nm per wheel for Performance, hard-braking, wide-tire, or harsher-use applications. This torque load is reviewed together with radial load, cornering load, brake clearance, and hub-centric fitment. Impact performance is documented separately through JWL / SAE-style impact validation rather than this static FEA section.

Validation load case	Model Y reference basis	Suggested LFI target	Why it matters
Radial vehicle load	Vehicle axle load and wheel load rating	890 kg per wheel	Represents heavy EV mass, passengers, cargo, and real road use.
Torque load	Vehicle mass, acceleration/deceleration, tire rolling radius, and axle torque distribution	~1,800 Nm road target Up to ~2,200 Nm Performance / hard-braking target	EV torque loads the hub pad, bolt seats, spoke roots, and rim barrel during real driving.
Cornering load	Lateral force during lane changes, ramps, and spirited driving	Application-specific	Shows how spoke and rim sections behave when vehicle weight shifts sideways.
Combined load case	Radial load + torque load + cornering load	Application-specific	More realistic than isolated static loading because vehicle weight, torque transfer, and lateral forces can occur together in real driving.

Why LFI Uses an 890 kg Model Y Target

For Tesla Model Y applications, LFI targets 890 kg per wheel on selected forged specifications. This is significantly above common 690 kg passenger-car wheels, while remaining proportionate to the Model Y’s weight class.

Higher targets such as 1,050 kg can be reserved for larger and heavier EV platforms, including full-size electric SUVs and heavier BYD applications where the vehicle mass and axle loading justify a larger engineering margin.

Why Avoid Generic Minimum-Spec Wheels

A generic aftermarket wheel may appear to fit the Tesla Model Y because it has the correct 5x114.3 bolt pattern and 64.1 mm center bore, but fitment is more than bolt pattern alone.

For the Model Y, LFI recommends avoiding wheels with unknown or unverified load rating, low passenger-car load rating without heavy-EV margin, unclear fatigue validation or impact-test documentation, spacer-dependent fitment, poor brake clearance documentation, or unclear hub-centric fitment documentation.

FEA Engineering Before Machining

Before machining a custom forged wheel, LFI uses Finite Element Analysis to review key structural areas such as spoke load paths, hub pad thickness, center bore geometry, brake clearance, and material distribution.

FEA allows LFI to identify stress concentration areas during the design stage, helping the engineering team balance strength, weight, concavity, and brake clearance before the wheel is produced.

Example FEA stress analysis of a Tesla Model Y forged wheel design — Example FEA stress analysis used to evaluate spoke geometry, hub strength, load paths, and material distribution before CNC machining.

Verified Lightweight Magnesium Construction

LFI’s AZ80+RE magnesium wheel program is developed for customers who want substantial weight reduction in a wheel that remains suitable for heavy EV use. Depending on the final design, brake clearance, offset, and finish, selected 20-inch magnesium Model Y wheels can be produced at very low target weights, including examples around 7.2 kg / 15.8 lb.

LFI CSF7 20-inch AZ80+RE magnesium wheel shown on a digital scale. Final weight varies by width, offset, brake clearance, finish, and customer specification.

JWL, VIA, TÜV, and LFI Internal Validation

Wheel testing and certification terms are often used together, but they do not always mean the same thing. LFI separates external certification, lab testing, and internal validation clearly so customers understand exactly what applies to their wheel specification.

Term	Meaning	How it applies to LFI custom wheels
JWL	Japanese technical standard for light alloy wheels.	Used as a reference standard for relevant load and durability requirements.
VIA	Japanese third-party wheel registration and verification system.	Applies only to specific wheel models/specifications that are formally registered.
TÜV	European technical testing or certification framework.	Applies only when a specific wheel/specification has supporting TÜV documentation.
Internal validation	LFI’s own engineering and test process.	Used for bespoke specifications built from validated design families.
FEA	Computer-based engineering simulation.	Used before machining to evaluate stress, weight, and clearance.

Selected high-volume reference specifications may be supported by external lab reporting or third-party documentation. Bespoke customer specifications are engineered from the same design families and validated through LFI’s internal heavy-EV engineering process. Certification status can vary by wheel model, market, and exact specification.

Gen 1 vs Juniper

Gen 1 vs Gen 2 “Juniper” Fitment Notes

Area	Gen 1 Model Y	Gen 2 “Juniper” Model Y
Bolt pattern	5x114.3 mm	5x114.3 mm
Center bore	64.1 mm	64.1 mm
Lug thread	M14x1.5	M14x1.5
Common square fitment	20x9.5 ET33–ET35	20x9.5 ET33–ET35
Common staggered fitment	21x9.5 / 21x10.5	21x9.5 / 21x10.5
Main consideration	Variant-specific hub and brake clearance	Confirm final brake and fender clearance before production

LFI recommends confirming the exact vehicle variant, brake package, suspension height, and tire choice before production, especially for aggressive 21-inch staggered or wide-tire square setups.

Real-World Builds

Real-World LFI Tesla Model Y Fitment Case Studies

The following examples are based on LFI production fitments for customers in multiple markets, not only Singapore. Because Tesla Model Y variants, road conditions, inspection expectations, and customer preferences can differ between regions such as Japan, the United States, Australia, China, and Malaysia, LFI uses real-world case data to refine fitment recommendations by vehicle variant, wheel size, tire choice, and intended use.

Case Study 1

VehicleTesla Model Y 2025 Gen 1

Build RefINV2025-23-9722

Wheel ModelLFI REX-06 V2

Specs20x9.5 ET33 square

Tires255/40R20 or 265/40R20

Target Weight9.35 kg

Maximum Concave Ultralight 20-Inch Square Setup

This setup was designed to maximize concavity while keeping the wheel suitable for the Model Y’s vehicle weight and brake clearance requirements. The 20x9.5 ET33 square configuration gives a more aggressive stance than stock while maintaining the ability to rotate tires front-to-rear.

The 255/40R20 tire keeps the factory-style tire diameter, while 265/40R20 adds more rim protection and a slightly fuller sidewall appearance.

LFI REX-06 V2 20-inch square fitment on Tesla Model Y.

Buy / Enquire REX-06 V2

Case Study 2

VehicleTesla Model Y “Juniper” 2025+

Build RefINV2026-13-2779

Wheel ModelLFI CSF6 Magnesium Series

Specs20x9.5 ET33 square

Tires255/40R20

Target Weight7.5 kg / 16.5 lb

Juniper Ultralight Magnesium 20-Inch Square Setup

This AZ80+RE magnesium setup was developed for owners who want a very lightweight 20-inch wheel without moving to a smaller diameter. Reducing wheel weight can improve steering response, suspension control, and acceleration feel. Efficiency gains may also be possible, although actual range improvement depends on tire model, driving style, road condition, and total wheel/tire weight.

Photo coming soon: production photo or scale-verification image can be added here when available.

Buy / Enquire CSF6

Case Study 3

VehicleTesla Model Y “Juniper” 2025+

Build RefINV2026-13-3818

Wheel ModelLFI CSF1 V3 Magnesium Series

Front Specs21x9.5 ET28

Rear Specs21x10.5 ET40

Tires255/35R21 + 275/35R21

Juniper 21-Inch Magnesium Staggered Street / Track Setup

This staggered 21-inch setup is aimed at owners who want the factory Performance-style tire sizing with a more aggressive forged wheel fitment. The ET28 front and ET40 rear offsets help the wheels sit closer to flush with the fenders while retaining practical tire sizing.

Because 21-inch wheels have shorter tire sidewalls, this setup prioritizes appearance and steering response over ride comfort.

Buy / Enquire CSF1M V3

Case Study 4

VehicleTesla Model Y “Juniper” 2025+

Build RefINV2025-46-7888

Wheel ModelLFI DF09 2-Piece Modular Series

Front Specs21x9.5 ET33

Rear Specs21x10.5 ET40

Tires265/35R21 + 285/35R21

Maximum Outer Lip 2-Piece Forged Setup

This customer requested a deep-dish appearance with a larger visible outer lip. LFI used a 2-piece forged construction to tune the barrel and face position separately while maintaining brake clearance and structural targets.

The wider 265/35R21 and 285/35R21 tires create a more muscular look, but this fitment should be checked carefully for clearance depending on vehicle height and tire brand.

Tesla Model Y Juniper with LFI DF09 2-piece forged wheel — LFI DF09 21-inch staggered setup with deep outer-lip styling.

Buy / Enquire DF09

Case Study 5

VehicleTesla Model Y “Juniper” 2025

Build RefINV2025-31-1639

Wheel ModelLFI MF271

Specs20x9.5 ET34 square

Tires255/40R20

Target Weight10.3 kg

Supreme Concave 20-Inch Square Setup

This fitment uses a concave profile blank to push the hub center visually deeper while retaining a practical 20-inch square setup. The square configuration allows tire rotation and is well suited to daily driving.

Tesla Model Y Juniper with LFI MF271 supreme concave forged wheel — LFI MF271 20-inch square fitment with a deeper concave forged profile.

Buy / Enquire MF271

Case Study 6

VehicleTesla Model Y 2024 Gen 1

Build RefINV2025-6-4366

Wheel ModelLFI CSF6

Specs20x10 ET39 square

Tires275/40R20

Wide-Tire 20x10 Square Setup

This setup is designed for owners who want more tire width while keeping a square configuration. A 20x10 ET39 wheel with 275/40R20 tires gives a wider contact patch and a fuller wheel arch appearance.

This is a more aggressive setup than the standard 20x9.5 square recommendation, so LFI recommends confirming tire brand, suspension height, and inner clearance before production.

Tesla Model Y Gen 1 with LFI CSF6 wide 20x10 square forged wheel setup — LFI CSF6 20x10 ET39 square setup with 275/40R20 tires.

Buy / Enquire CSF6

Case Study 7

VehicleTesla Model Y 2023 Gen 1

Build RefINV2025-2-2349

Wheel ModelLFI custom one-off design

Specs20x9.5 ET35 square

Tires255/40R20

FinishMatte CQ01

OEM+ Floating Cap Custom Setup

This setup was designed for a clean OEM+ look using aftermarket floating Tesla-style center caps. The 20x9.5 ET35 fitment gives a slightly wider stance than many factory setups while keeping the design subtle and suitable for daily use.

Tesla Model Y with LFI custom one-off OEM plus floating cap forged wheel setup — Custom one-off Model Y setup with OEM+ floating cap styling. CTA skipped because this is not a standard product model.

Recommended Models

Recommended LFI Wheel Models for Tesla Model Y

For Model Y, LFI recommends forged models that can be configured around the vehicle’s 5x114.3 PCD, 64.1 mm center bore, EV load target, brake clearance, and preferred tire setup. The models below correspond directly to the production case studies in this guide where applicable.

LFI REX-06 V2

Forged Aluminum Concave Daily Setup

Recommended for owners who want the same aggressive concave 20-inch square direction shown in Case Study 1.

Material: 6061-T6 forged aluminum

Best Model Y concept: 20x9.5 ET33–ET35 square

Best for: daily stance, concavity, strength-to-weight balance

Buy / Enquire REX-06 V2

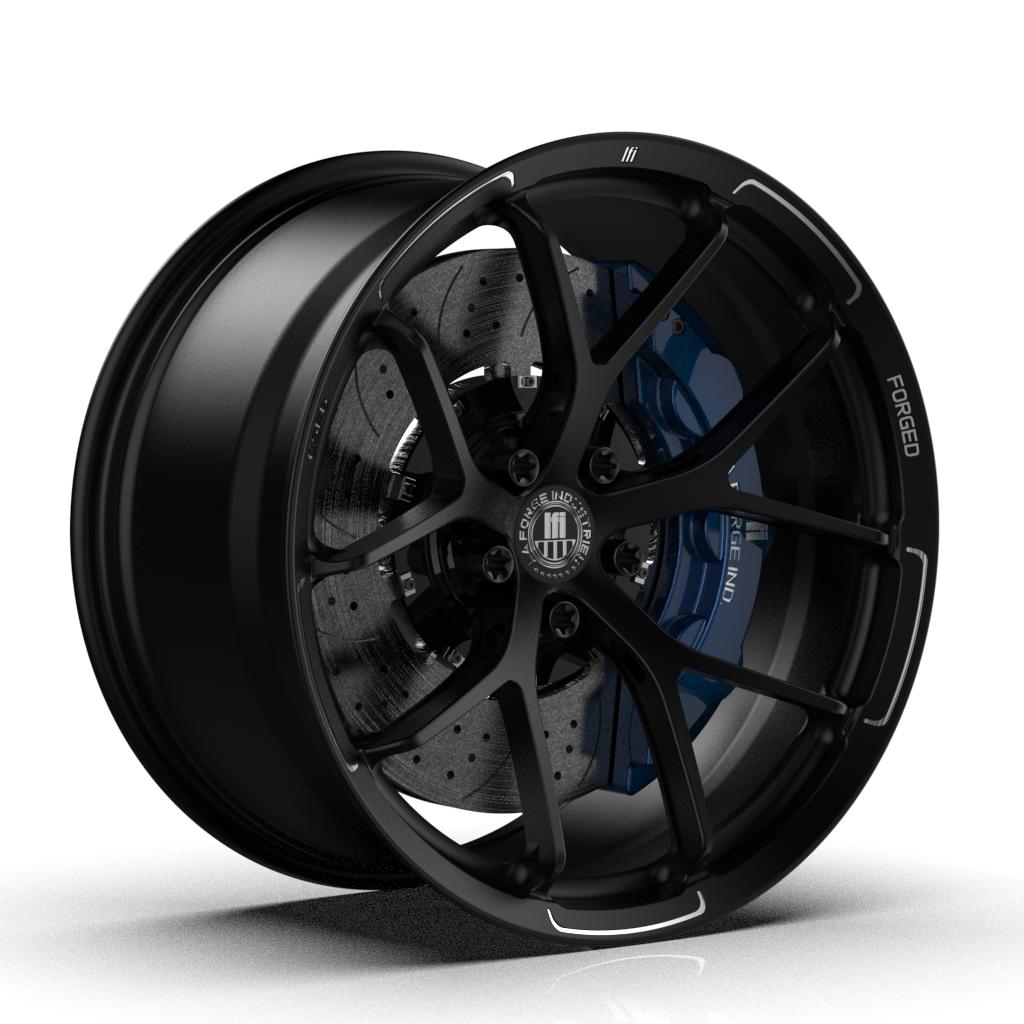

LFI CSF6

Lightweight Forged Street / Performance Setup

A strong Model Y option for lightweight square fitments, including 20x9.5 and wider 20x10 configurations.

Material: 6061-T6 forged aluminum

Best Model Y concept: 20x9.5 or 20x10 square

Best for: lightweight daily setups, wider square builds

Buy / Enquire CSF6

LFI CSF1M V3

AZ80+RE Magnesium Performance Setup

Recommended for customers who want the lightweight magnesium direction shown in the Juniper staggered street / track case study.

Material: AZ80A-T6 magnesium forged monoblock

Best Model Y concept: 21-inch staggered or 20-inch ultralight setup

Best for: maximum weight saving, sharper response, premium builds

Buy / Enquire CSF1M V3

LFI MF271

Supreme Concave Forged Setup

Recommended for owners who want the deeper concave visual direction shown in the 20-inch square Juniper case study.

Material: 6061-T6 forged aluminum

Best Model Y concept: 20x9.5 ET34 square

Best for: supreme concave, OEM+ daily builds

Buy / Enquire MF271

LFI DF09

2-Piece Deep-Lip Show Setup

Recommended for Model Y customers who want the deep outer-lip appearance shown in the 21-inch staggered case study.

Material: 2-piece forged construction

Best Model Y concept: 21x9.5 / 21x10.5 staggered

Best for: deep lip, show stance, custom finish combinations

Buy / Enquire DF09

Fitment note: Product pages show base wheel models. Final Model Y fitment should still be confirmed with LFI for exact width, offset, brake clearance, finish, tire size, load target, and hub-centric machining before production.

Global Support

Global Fitment Support and Distribution

LFI’s Model Y fitment recommendations are built from international customer projects rather than a single local market. The company’s distribution and customer support network spans Japan, the United States, Australia, China, Malaysia, and Singapore, giving LFI practical experience with different road surfaces, inspection environments, tire availability, and styling preferences.

A Model Y owner in Japan may prioritize inspection-friendly offsets and conservative fender coverage, while a U.S. customer may prefer a more aggressive flush stance.

Australian and Malaysian customers may place more emphasis on pothole resistance, ride comfort, and tire availability. Chinese-market Model Y owners may require fitment confirmation for local vehicle variants and commonly available tire models.

This global feedback loop helps LFI recommend fitments that are not only visually correct, but also practical for the customer’s driving environment.

General Guidelines

General Tesla Model Y Fitment Guidelines

19-Inch Comfort and Range Setup

Wheel: 19x9.5 ET35–ET40
Tire: 255/45R19

A 19-inch setup gives the Model Y the most tire sidewall and usually the best ride comfort. It is the most practical choice for rough roads, long commuting, and owners who prioritize efficiency.

20-Inch Goldilocks Setup

Wheel: 20x9.5 ET33–ET35
Tire: 255/40R20 or 265/40R20

For most owners, this is the best Model Y forged wheel setup. It fills the wheel arches better than 19-inch wheels but rides more comfortably than 21-inch wheels.

20-Inch Wide Square Setup

Wheel: 20x10 ET39
Tire: 275/40R20

This is a wider and more aggressive square setup. It can improve mechanical grip and visual stance, but tire choice and clearance should be confirmed carefully.

21-Inch Performance Staggered Setup

Front: 21x9.5 ET28–ET30 with 255/35R21
Rear: 21x10.5 ET38–ET40 with 275/35R21

This setup is best for owners who want the most aggressive factory-style performance look. It is less comfort-focused than 19-inch or 20-inch setups.

FAQ

Tesla Model Y Wheel FAQ

What is the Tesla Model Y bolt pattern?

The Tesla Model Y uses a 5x114.3 mm bolt pattern.

What is the Tesla Model Y center bore?

The Tesla Model Y uses a 64.1 mm center bore. Always confirm hub-centric fitment, brake clearance, tire sizing, and offset before ordering aftermarket wheels for any Model Y variant.

What lug nut thread does the Tesla Model Y use?

The Tesla Model Y uses M14x1.5 wheel hardware.

What is the Tesla Model Y wheel torque spec?

The factory torque specification is 129 lb-ft / 175 Nm.

What is the best forged wheel size for Tesla Model Y?

For most owners, the best overall setup is 20x9.5 ET33–ET35 with 255/40R20 or 265/40R20 tires. This gives a strong balance of appearance, comfort, weight, and tire rotation.

What is the best 19-inch Model Y setup?

A strong comfort and range setup is 19x9.5 ET35–ET40 with 255/45R19 tires. It gives the most sidewall and is usually the most practical option for rough roads or long commuting.

What is the best 20-inch Model Y setup?

A strong 20-inch daily setup is 20x9.5 ET33–ET35 with 255/40R20 or 265/40R20 tires. LFI uses this as the main Model Y forged-wheel sweet spot.

Can I run 20x10 wheels on a Tesla Model Y?

Yes, but it is a more aggressive fitment. LFI has produced 20x10 ET39 square setups with 275/40R20 tires. Clearance should be checked based on tire brand, suspension height, and vehicle variant.

Can I run 21-inch staggered wheels on a Tesla Model Y?

Yes. A common performance-style staggered setup is 21x9.5 front and 21x10.5 rear with 255/35R21 front and 275/35R21 rear tires. Wider 265/35R21 and 285/35R21 combinations should be checked carefully for clearance.

Should I choose square or staggered fitment?

A square setup is usually better for daily use because it allows front-to-rear tire rotation. A staggered setup gives a more aggressive Performance-style appearance and wider rear tire footprint, but it reduces tire-rotation flexibility.

Do Gen 1 and Juniper Model Y use the same wheel specs?

The basic 5x114.3 PCD, 64.1 mm center bore, and M14x1.5 hardware remain the same, but Juniper-specific brake clearance, fender clearance, tire choice, and final suspension height should still be confirmed before production.

Does the Model Y Performance need different wheel fitment?

Model Y Performance fitment should be checked carefully for brake clearance, tire sizing, load rating, and offset. This guide does not claim that Model Y Performance uses the stepped rear hub profile associated with pre-Highland Model 3 Performance applications.

Do I need spacers for a flush Model Y fitment?

Not with a properly engineered custom forged wheel. LFI machines the correct width and offset into the wheel design, reducing the need for bolt-on spacers.

Will lighter forged wheels improve EV range?

Lighter forged wheels can reduce unsprung and rotational mass, which may improve steering response, acceleration feel, and energy use in some driving conditions. Actual range gains depend heavily on tire choice, tire pressure, wheel size, road conditions, and driving style.

Are magnesium wheels suitable for Model Y?

Yes, when engineered with the correct EV load target and fitment. LFI’s magnesium Model Y builds are intended for customers prioritizing maximum weight reduction, sharper response, and premium performance fitment.

What load rating should I choose for Model Y wheels?

LFI positions 890 kg per wheel as the preferred Model Y target for selected forged road-use specifications. It gives a stronger application-specific reserve than common 690 kg passenger-car wheels.

Why does LFI compare 690 kg, 890 kg, and 1,050 kg?

The comparison shows why 890 kg is proportionate for Model Y. A 690 kg wheel can sit below a conservative rear-wheel reference, while 1,050 kg is better reserved for heavier EV SUVs and heavy-duty applications.

Why does LFI discuss torque load?

Model Y wheels are loaded not only by vehicle weight but also by instant EV acceleration, regenerative deceleration, braking, cornering, potholes, and wide tires. Torque load helps evaluate stress through the hub pad, bolt seats, spokes, and barrel.

Can I use OEM Tesla center caps or floating caps?

LFI can design selected Model Y wheels to support OEM-style Tesla center caps, floating caps, or custom cap systems when requested during order drafting.

What information does LFI need before building Model Y wheels?

LFI should confirm vehicle year, variant, Gen 1 or Juniper platform, brake package, suspension height, preferred diameter, tire size, desired stance, finish, center cap preference, and whether the priority is range, daily comfort, lightweight performance, or maximum visual impact.

Start a Custom Build

Build a Custom Tesla Model Y Forged Wheel Setup

Every LFI Tesla Model Y wheel is built to order based on the vehicle variant, wheel size, offset, brake clearance, tire size, finish, customer preference, and regional usage environment. A Model Y used for daily commuting in Singapore, long-distance highway driving in Australia, canyon roads in California, or urban use in Japan may require different tire and offset priorities.

To begin a custom Model Y or Model Y Juniper forged wheel build, send the LFI team your vehicle year and variant, suspension setup, preferred wheel diameter, tire size, desired stance, and brake upgrade details if any.

Contact LFI Engineering View Testing & Compliance

Explore LFI's Bespoke Forged Wheels Forged Rims Concave rucci american bc for trucks Custom Sport

Tesla Model Y Forged Wheel Fitment Guide: Gen 1 & Gen 2 “Juniper”

Why Model Y Wheel Fitment Needs More Than Bolt Pattern Matching

Quick Tesla Model Y Wheel Specs

Best Reference Build for Tesla Model Y Owners

Featured Build: REX-06 V2 Ultralight 20-Inch Square Setup

Recommended Tesla Model Y Forged Wheel Setups

Engineering Proof & Validation

Why Load Rating Matters on Tesla Model Y Wheels

690 kg vs 890 kg vs 1,050 kg: Practical Model Y Load Margin

EV-Specific FEA: Torque Load and Combined Stress Cases

Why LFI Uses an 890 kg Model Y Target

Why Avoid Generic Minimum-Spec Wheels

FEA Engineering Before Machining

Verified Lightweight Magnesium Construction

JWL, VIA, TÜV, and LFI Internal Validation

Gen 1 vs Gen 2 “Juniper” Fitment Notes

Real-World LFI Tesla Model Y Fitment Case Studies

Maximum Concave Ultralight 20-Inch Square Setup

Juniper Ultralight Magnesium 20-Inch Square Setup

Juniper 21-Inch Magnesium Staggered Street / Track Setup

Maximum Outer Lip 2-Piece Forged Setup

Supreme Concave 20-Inch Square Setup

Wide-Tire 20x10 Square Setup

OEM+ Floating Cap Custom Setup

Recommended LFI Wheel Models for Tesla Model Y

LFI REX-06 V2

Forged Aluminum Concave Daily Setup

LFI CSF6

Lightweight Forged Street / Performance Setup

LFI CSF1M V3

AZ80+RE Magnesium Performance Setup

LFI MF271

Supreme Concave Forged Setup

LFI DF09

2-Piece Deep-Lip Show Setup

Global Fitment Support and Distribution

General Tesla Model Y Fitment Guidelines

19-Inch Comfort and Range Setup

20-Inch Goldilocks Setup

20-Inch Wide Square Setup

21-Inch Performance Staggered Setup

Tesla Model Y Wheel FAQ

Build a Custom Tesla Model Y Forged Wheel Setup

Subscribe
